category:
Electric Motors
height:
6.87
length:
9.41
manufacturer:
Century
mpn:
285
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
6.87

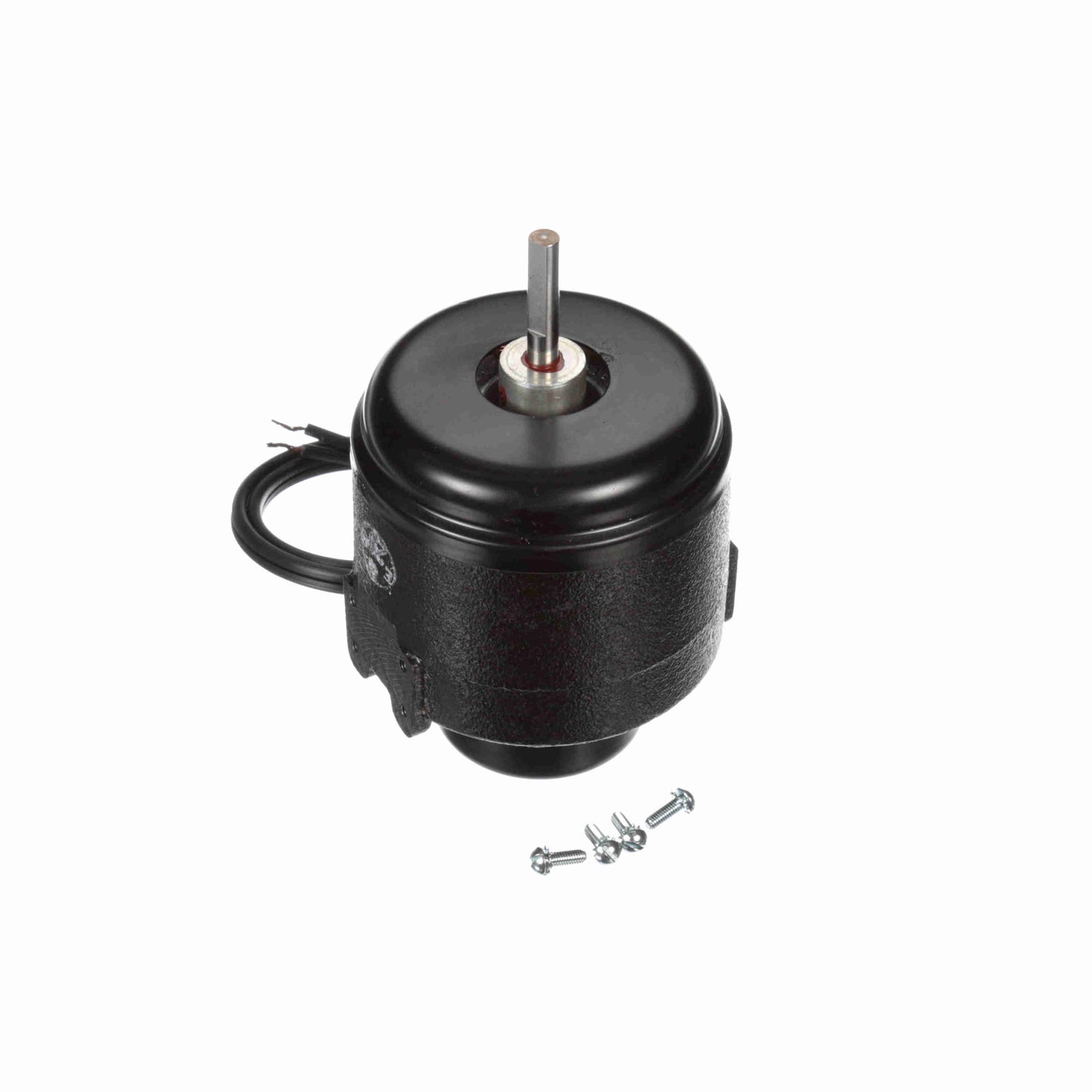

Product Overview
- OEM Direct Replacement Motor
- Unit Bearing
- Shaded PoleShaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 5/16" Diameter Shaft with Flat
- 22" Leads
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current0.85 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight7.00 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationClockwise Lead End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeFlat
Frame Length4.91 in
Shaft Diameter0.312 in
Shaft Extension1.5 in
HTC8501.40.2040
Output Watts50 W
CEN
Starting MethodAcross The Line
