category:
Electric Motors
height:
3
length:
4.5
manufacturer:
Century
mpn:
BR0675
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2
width:
2.87
Product Description

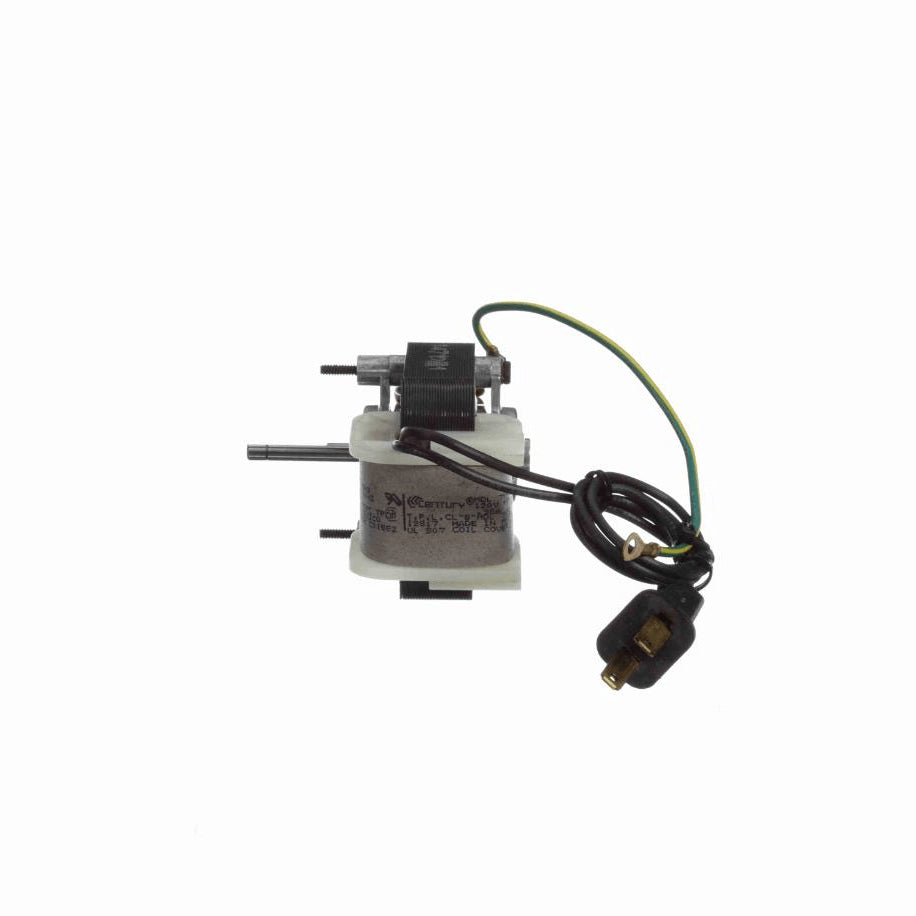

Century - BR0675
- OEM Direct Replacement Motor
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- .217" Diameter Shaft with Flat
- 6.9" Leads with Molded Plug
- Extended Studs Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed2850 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.00 LB
Country Of originMexico
Output HP7/8" STACK Hp
Service Factor1
FrameC-FRAME
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise
MountingBracket
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.217 in
Shaft Extension1.2 in
CEN
Starting MethodInduction Run
