category:
Electric Motors
height:
6.87
length:
7.56
manufacturer:
Century
mpn:
9218
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3
width:
6.5
Product Overview

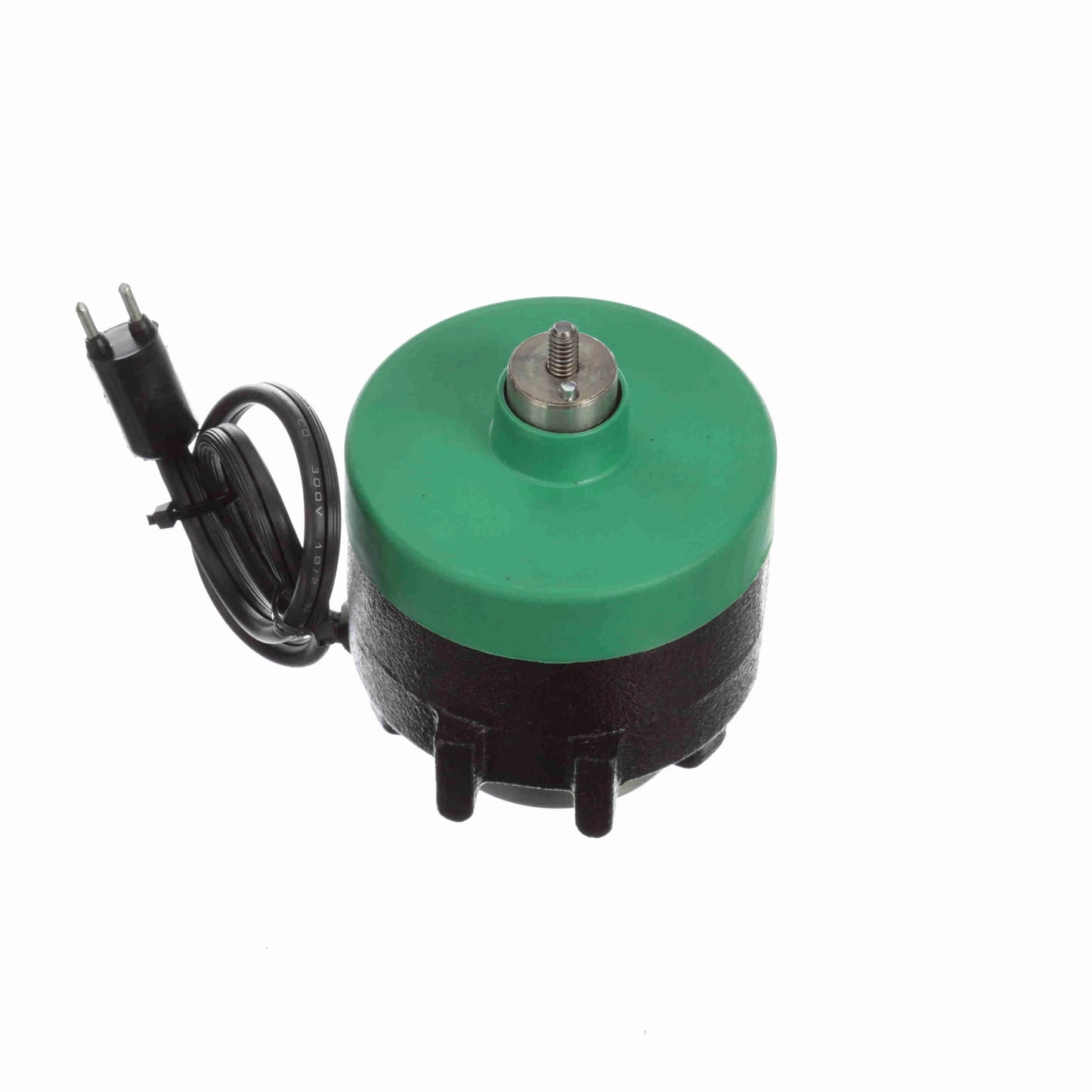

- iMotor - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 15" Leads with Molded Plug
- Double Boss, 3 Tapped Holes Opposite Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1650 rpm
Current.32 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight3.00 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeElectronically Commutated Motor
Poles4
RotationClockwise Lead End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeThreaded
Frame Length4.12 in
Shaft Diameter1/4x20 in
Shaft Extension0.44 in
Output Watts9 W
CEN
Starting MethodAcross The Line
