category:
Electric Motors
height:
8.5
length:
14
manufacturer:
Century
mpn:
789A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
8

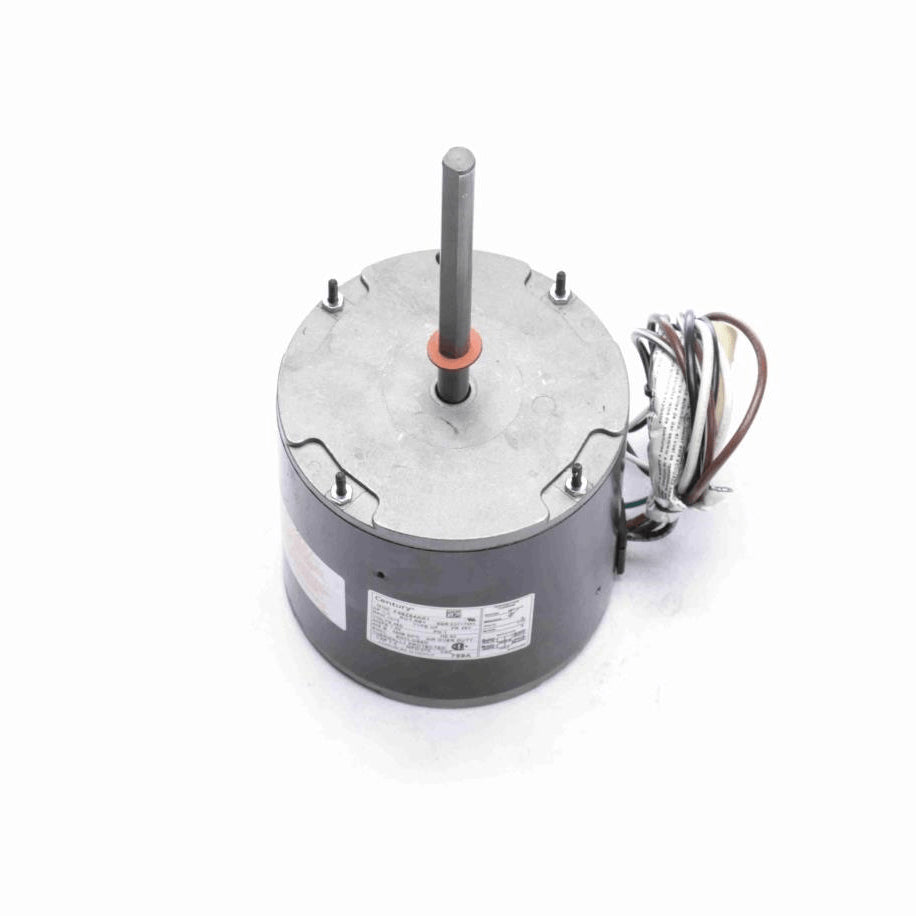

Product Overview
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.00 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.24 in
Shaft Diameter0.500 in
Shaft Extension6.06 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
