category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
13.18
manufacturer:
Century
mpn:
FE1026
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
7.25
Product Overview

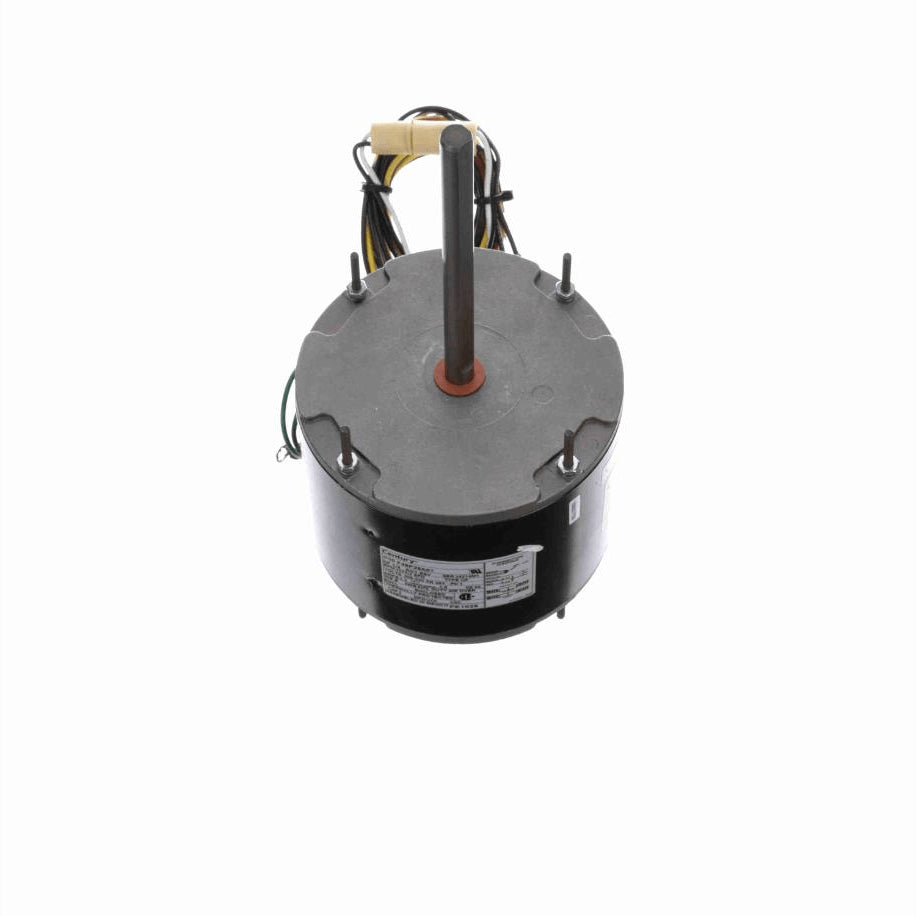

- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.3 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
