category:
Electric Motors
height:
7.37
length:
15.18
manufacturer:
Century
mpn:
FH1024
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
7.31

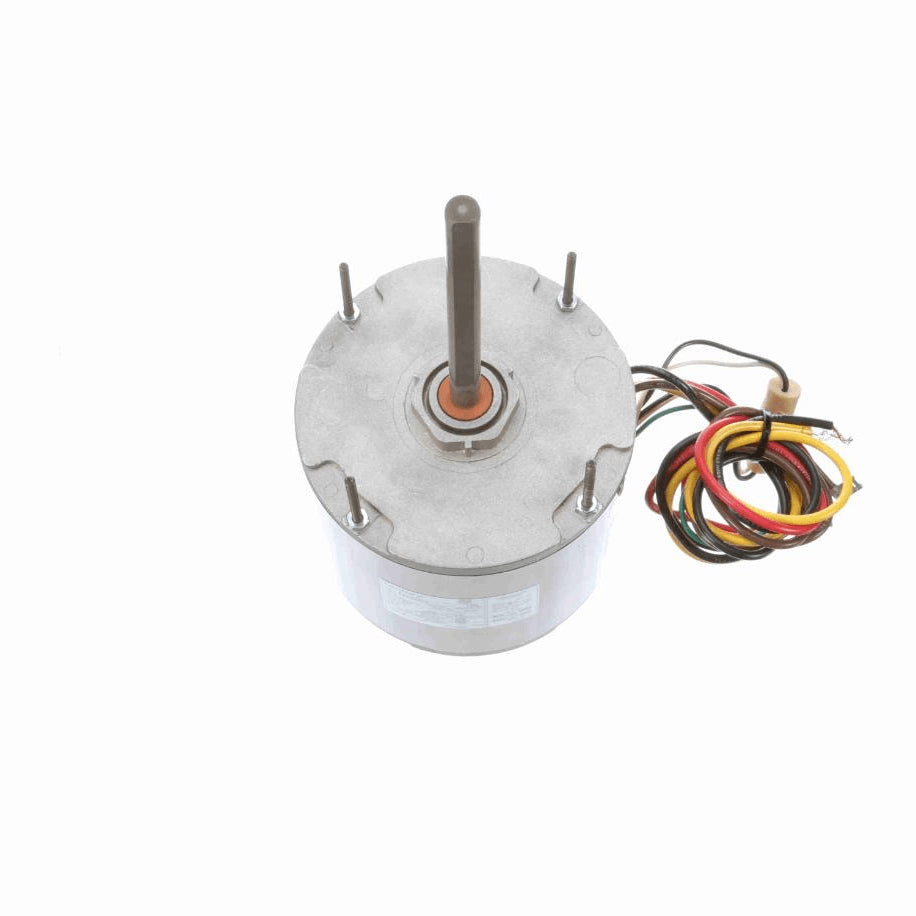

Product Overview
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed, Except Open Lead End End-Frame Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current.9 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.25 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
