category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
14.18
manufacturer:
Century
mpn:
FEH1028S
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.5
Product Overview

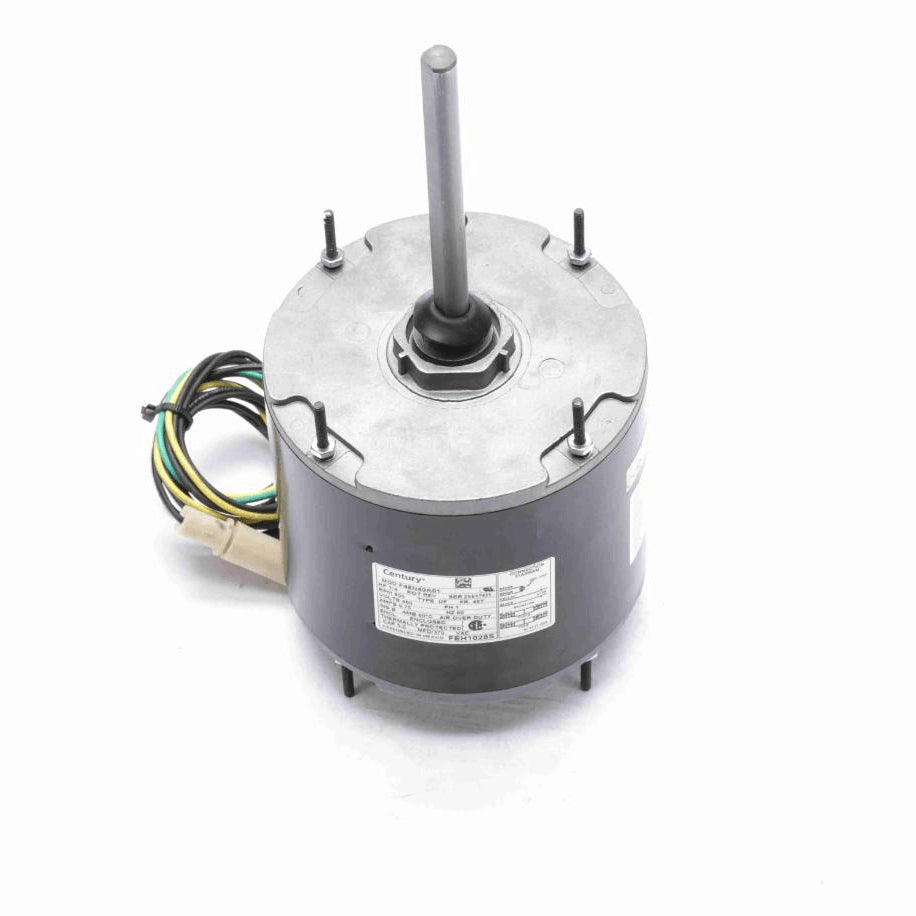

- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed850 rpm
Current0.75 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.25 in
Shaft Diameter0.500 in
Shaft Extension6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
