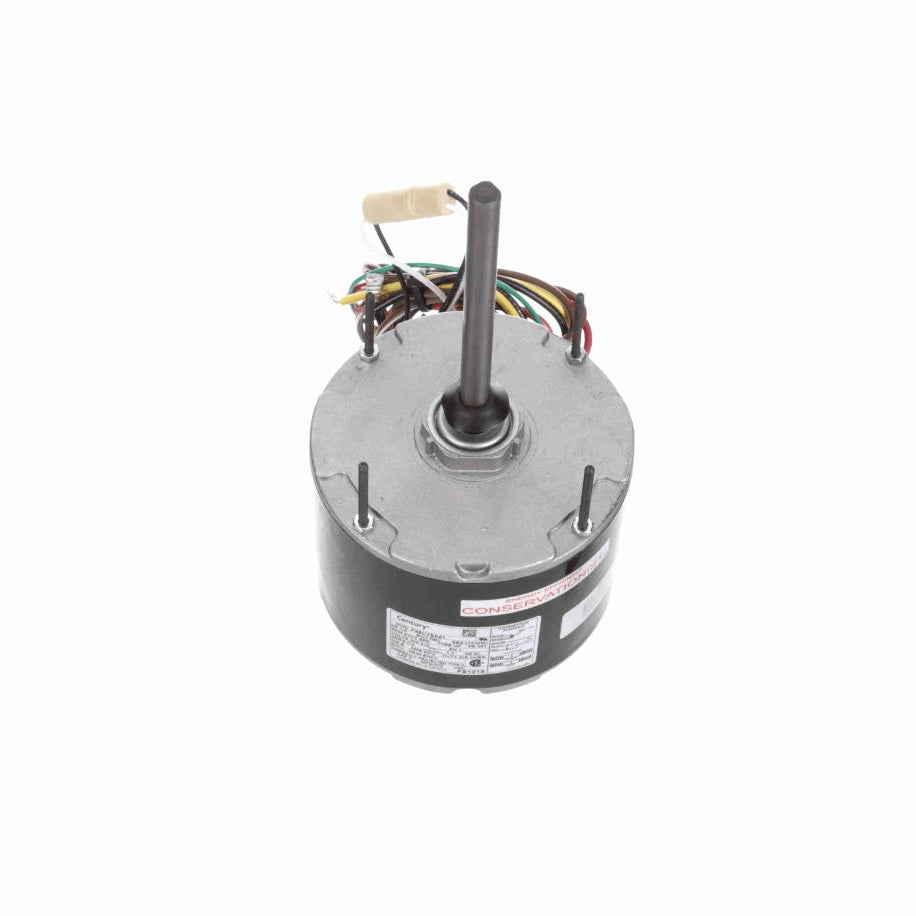

Century Condenser Fan Motor, 1/6 HP, 1 Ph, 60 Hz, 208-230 V, 825 RPM, 2 Speed, 48 Frame, SEMI ENCLOSED - FS1018

Century Condenser Fan Motor, 1/6 HP, 1 Ph, 60 Hz, 208-230 V, 825 RPM, 2 Speed, 48 Frame, SEMI ENCLOSED - FS1018

Back Order

Get it by Thu, May 29 - Tue, Jun 03

SKU kpi045-FS1018

0
(0 rating)
$255.01 USD
$255.01 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: TW
height: 6.81
length: 12.87
manufacturer: Century
mpn: FS1018
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 12
width: 6.81

Product Description

Century - FS1018

  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Enclosed, Except Open Lead End End-Frame Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed825 rpm
Current0.90 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.69 in
Shaft Diameter0.500 in
Shaft Extension6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
