category:
Electric Motors
country_of_origin:
TW
height:
10
length:
15.5
manufacturer:
Century
mpn:
FB1106
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
30
width:
10.5
Product Overview

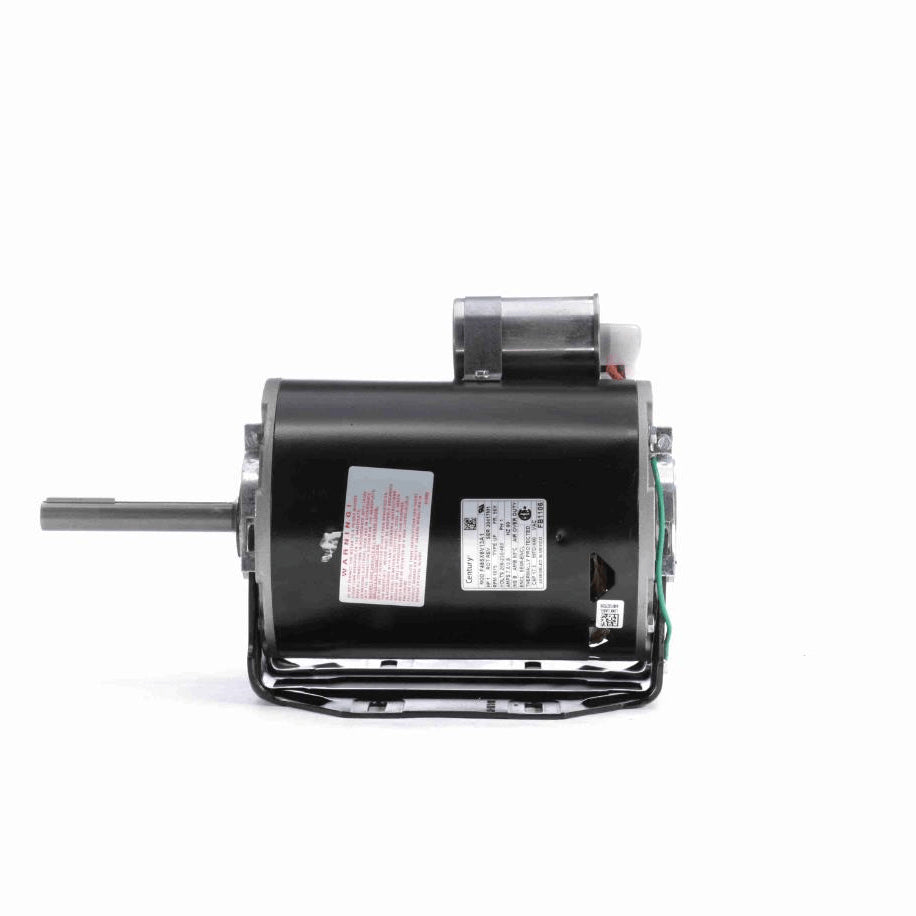

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 17.5 Mfd-440 Volts (Supplied with Motor)
- Thermally Protected
- Open Lead End End-Frame, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 5/8" Diameter Keyed Shaft with Flat
- Conduit Box
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current7.6/3.8 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight30.00 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame56Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length7.00 in
Shaft Diameter0.625 in
Shaft Extension4.1 in
HTC8501.40.6040
CEN
Starting MethodAcross The Line
