category:
Electric Motors
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
F1106
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
22
width:
6.45
Product Description

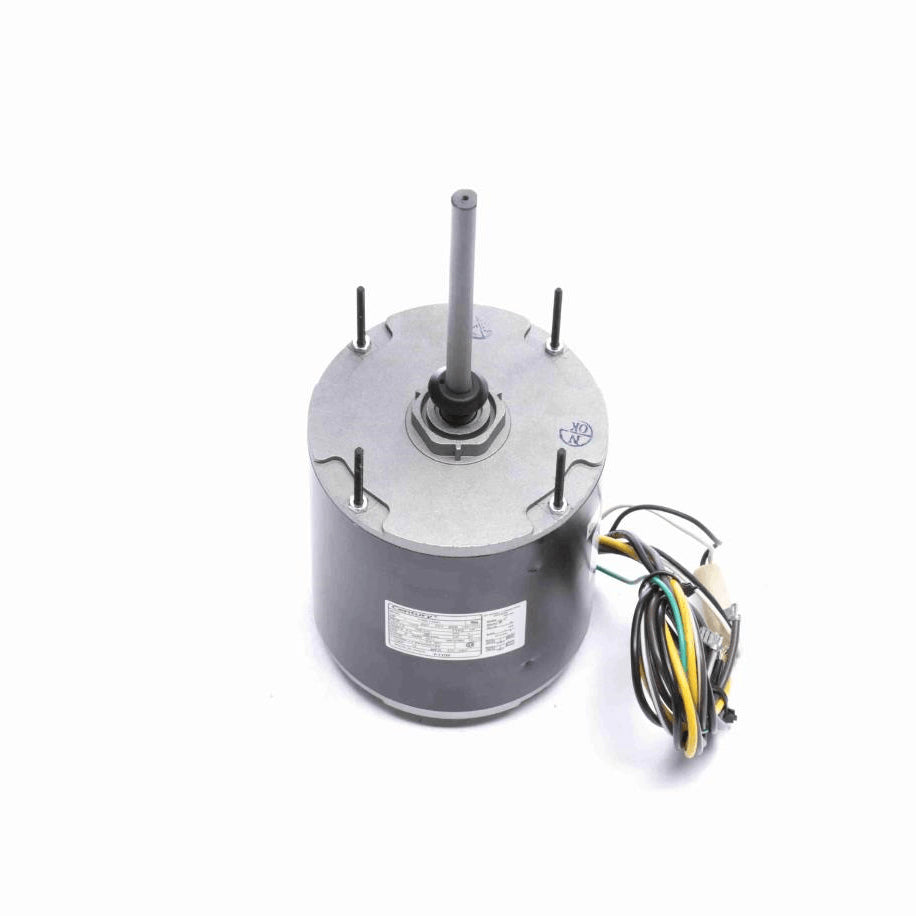

Century - F1106
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed, Except Open Lead End End-Frame Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current5.4 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight22.00 LB
Country Of originIndia
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.50 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.6040
CEN
Starting MethodAcross The Line
Efficiency68.8 %
