category:
Electric Motors
height:
7.37
length:
14.18
manufacturer:
Century
mpn:
F1076A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
7.25

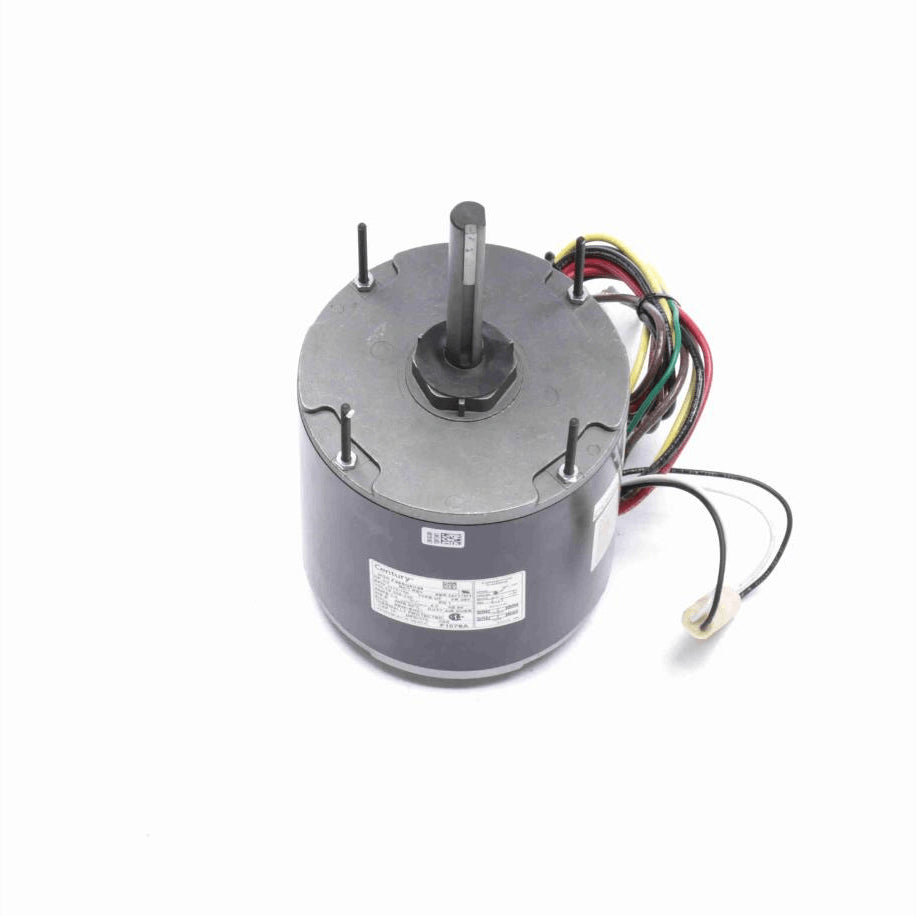

Product Overview
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed, Except Open Lead End End-Frame Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 5/8" Diameter Keyed Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075/750 rpm
Current3.5 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length4.75 in
Shaft Diameter0.625 in
Shaft Extension4.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
