category:
Electric Motors
height:
10
length:
13
manufacturer:
Century
mpn:
C043A
subcategory:
AC Motors - NEMA
type:
Farm and Agriculture Motors
weight:
20
width:
7
Product Overview

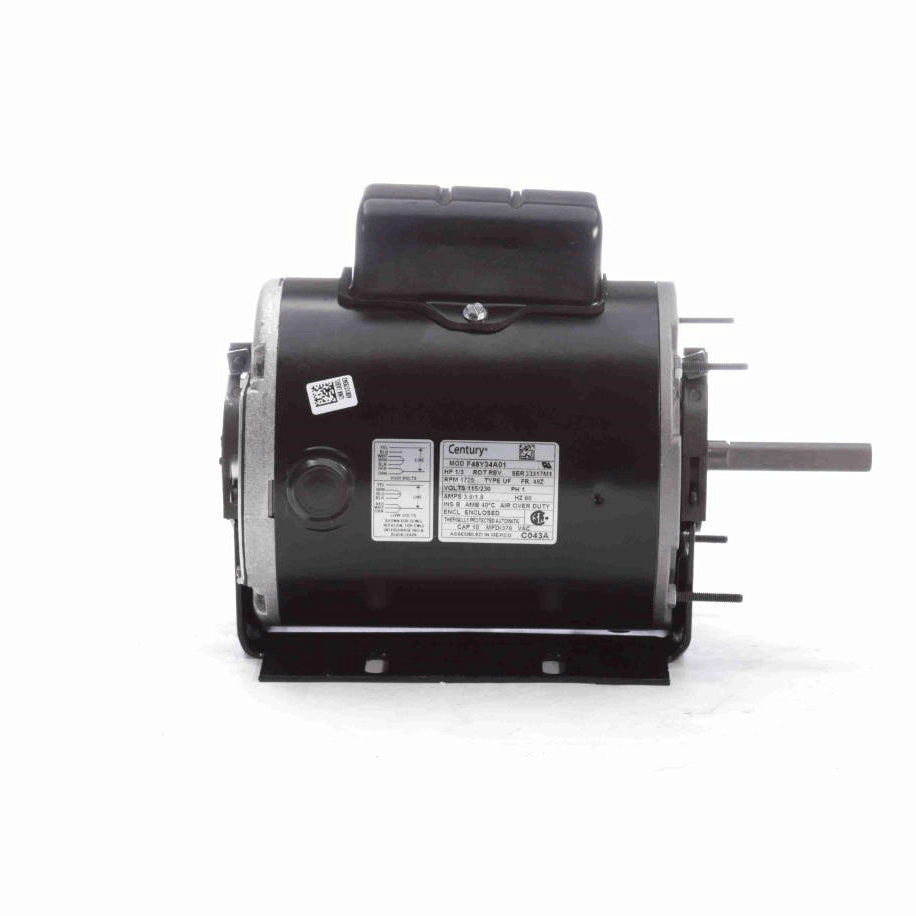

- Farm / AG Direct Drive Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermal Protection: Automatic
- Totally Enclosed Air Over, Fully Gasketed
- Class B Insulation, 40°C Ambient
- Ball Bearings, Double Sealed
- 1/2" Diameter Shaft with Double Flat
- Resilient Base, Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1725 rpm
Current3.6/1.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Z
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Base
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length6.00 in
Shaft Diameter0.500 in
Shaft Extension3.14 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
