category:
Electric Motors
country_of_origin:
MX
height:
10
length:
13
manufacturer:
Century
mpn:
C045A
subcategory:
AC Motors - NEMA
type:
Farm and Agriculture Motors
weight:
16
width:
7
Product Overview

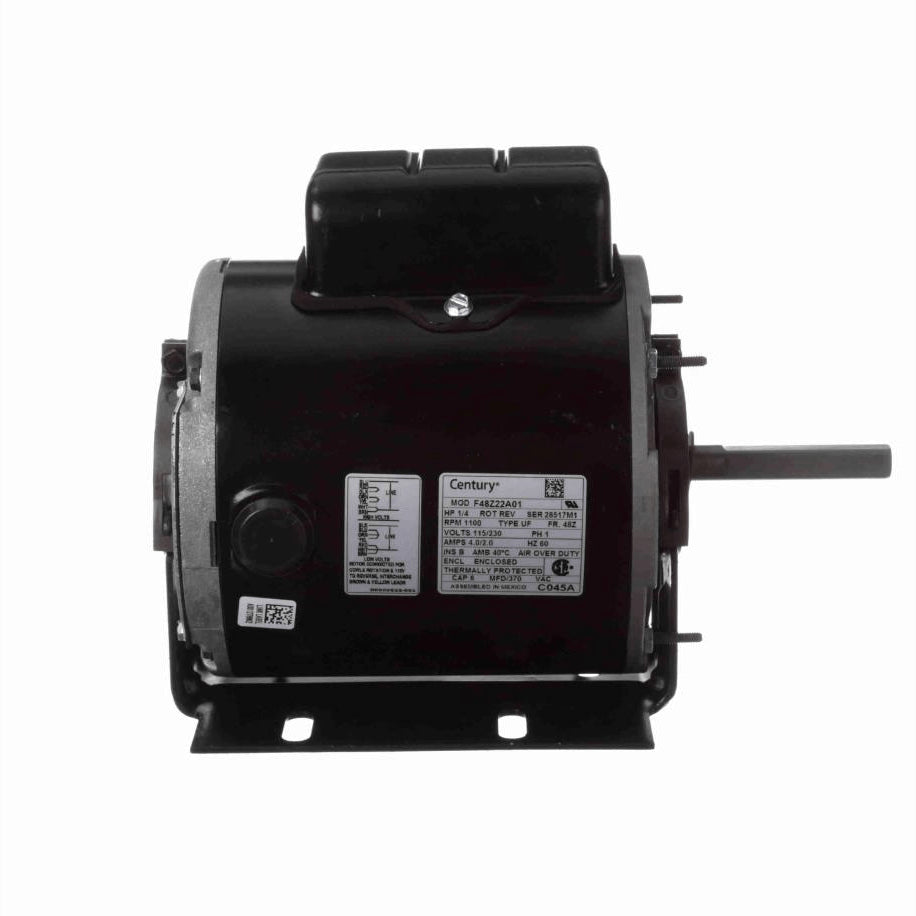

- Farm / AG Direct Drive Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermal Protection: Automatic
- Totally Enclosed Air Over, Fully Gasketed
- Class B Insulation, 40°C Ambient
- Ball Bearings, Double Sealed
- 1/2" Diameter Shaft with Double Flat
- Resilient Base, Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current4.0/2.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Z
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Base
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.25 in
Shaft Diameter0.500 in
Shaft Extension3.28 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
