category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
EM3469
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
width:
6.41
Product Overview

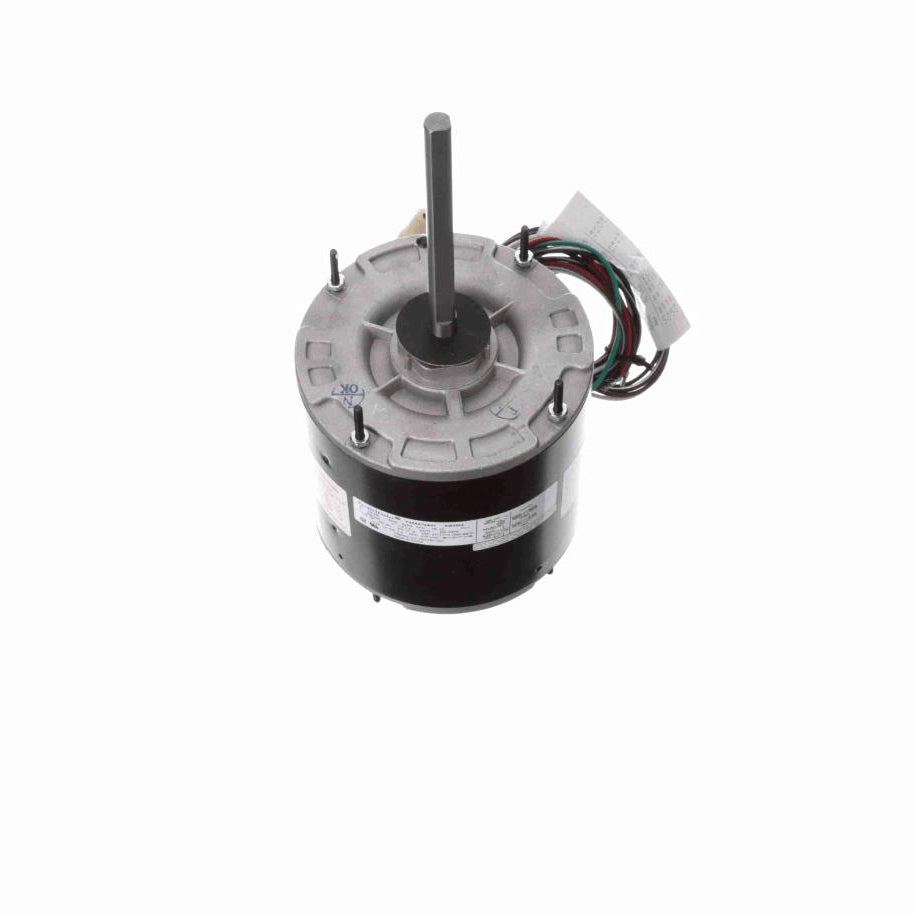

- EconoMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 or 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current1.9, 1.2 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originIndia
Output HP1/3, 1/5 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.63 in
Shaft Diameter0.500 in
Shaft Extension6.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
