category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
EM3729F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.41
Product Overview

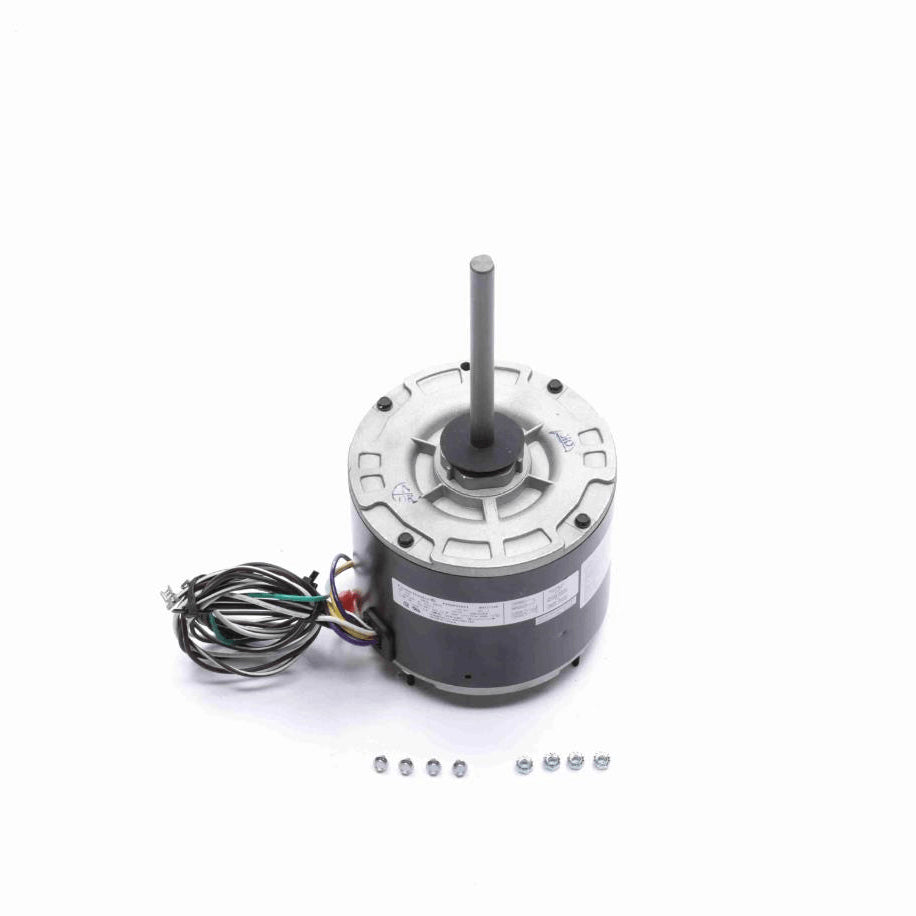

- EconoMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.2-2.5 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight14.00 LB
Country Of originIndia
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.69 in
Shaft Diameter0.500 in
Shaft Extension6.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
