category:
Electric Motors
country_of_origin:
MX
height:
9.81
length:
12.87
manufacturer:
Century
mpn:
BL6532
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
9.81

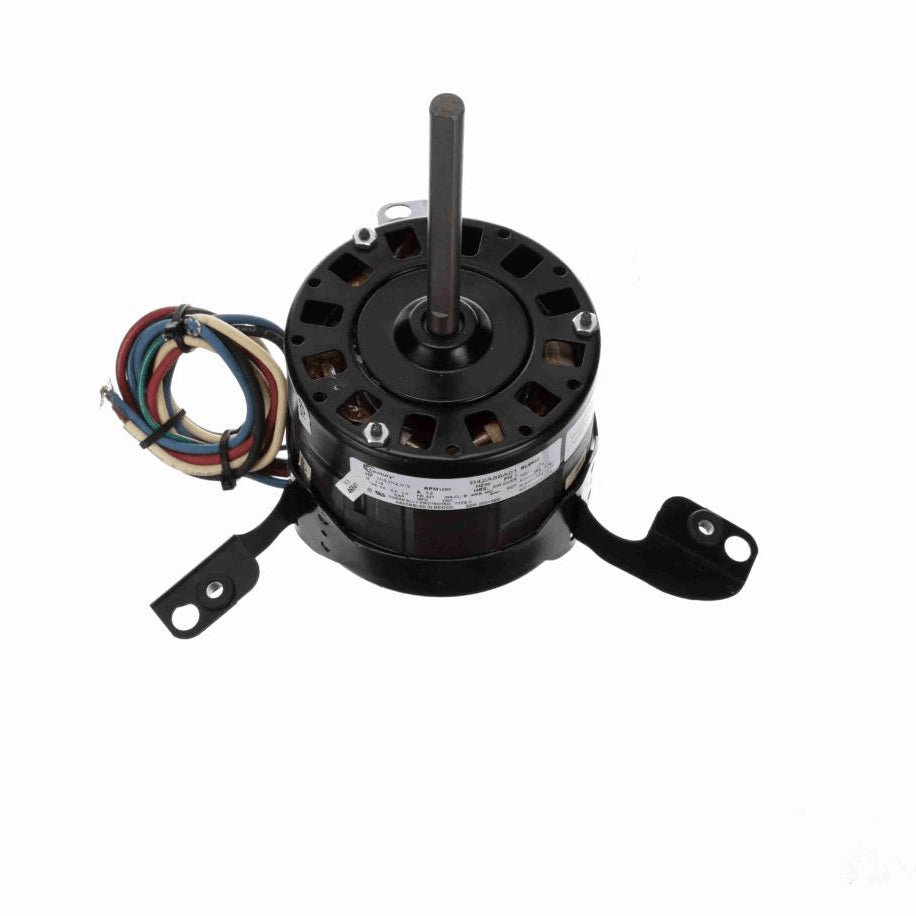

Product Overview
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 24" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current3.2 A
Number of Speeds3
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/10,1/12,1/15 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingFlexible Arms
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.6 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
