category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
BLR6407
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
5.81

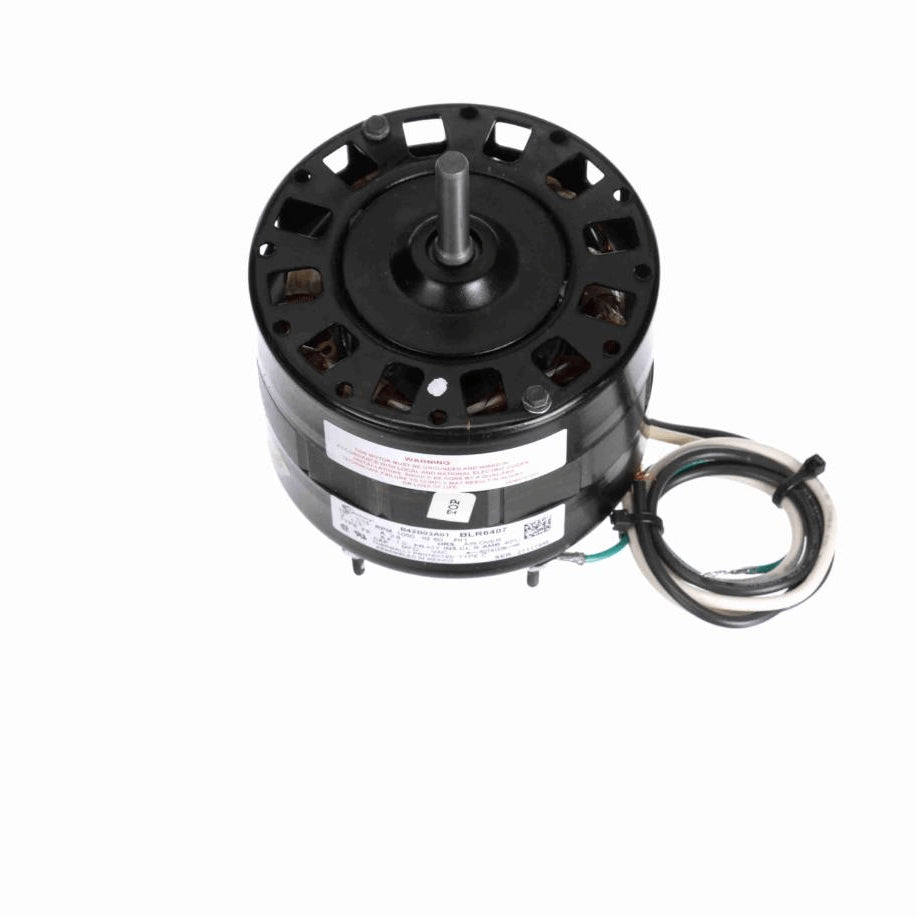

Product Overview
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Half Open Shaft End and Lead End Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 20" Leads
- Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current2.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension1.9 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
