category:
Electric Motors
height:
7.81
length:
18.88
manufacturer:
Century
mpn:
9608
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
7.81

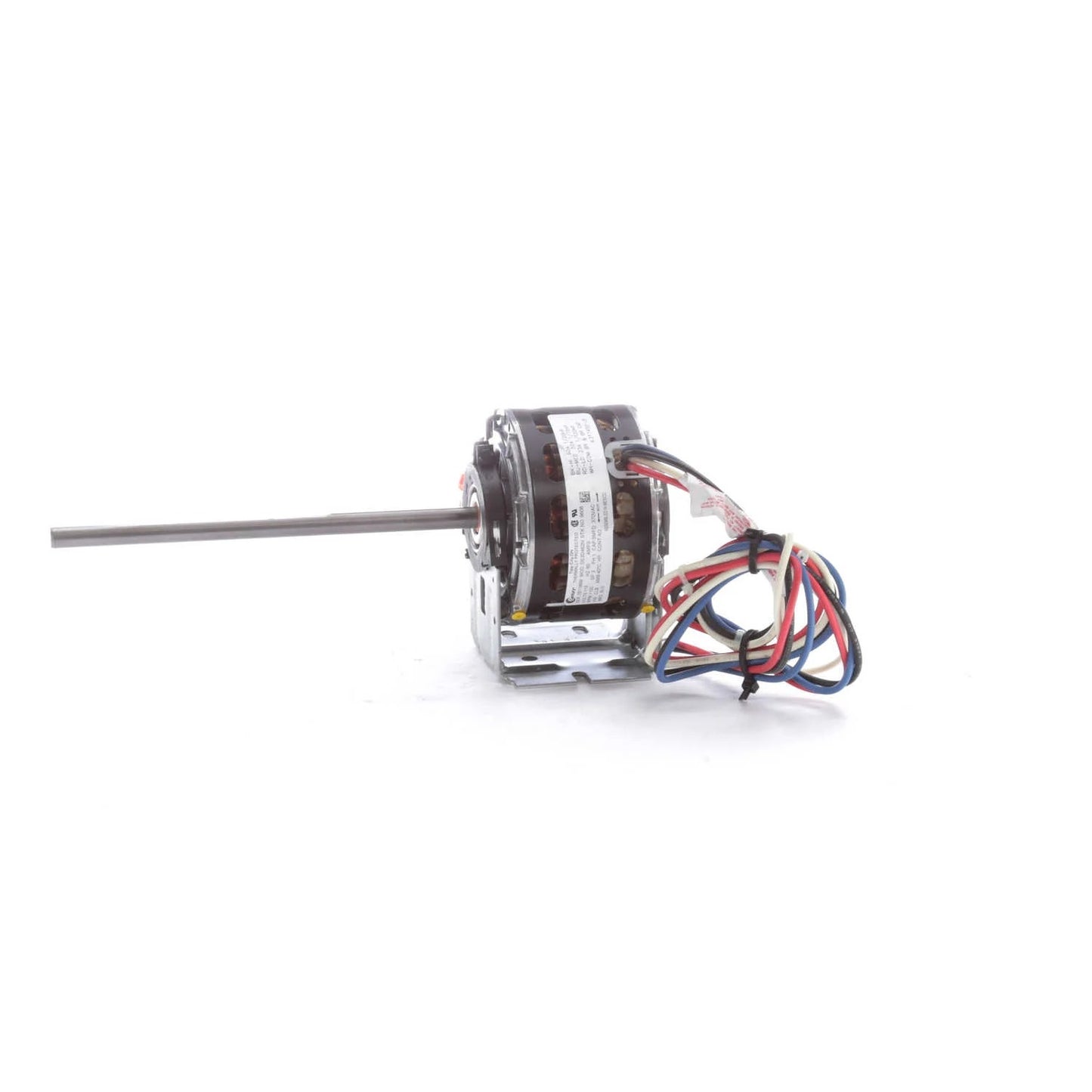

Product Overview
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 44" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed1100 rpm
Current.60 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/20, 1/75, 1/120 Hp
Output KW0.04 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.67 in
Shaft Diameter0.500 in
Shaft Extension9 7/8 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
