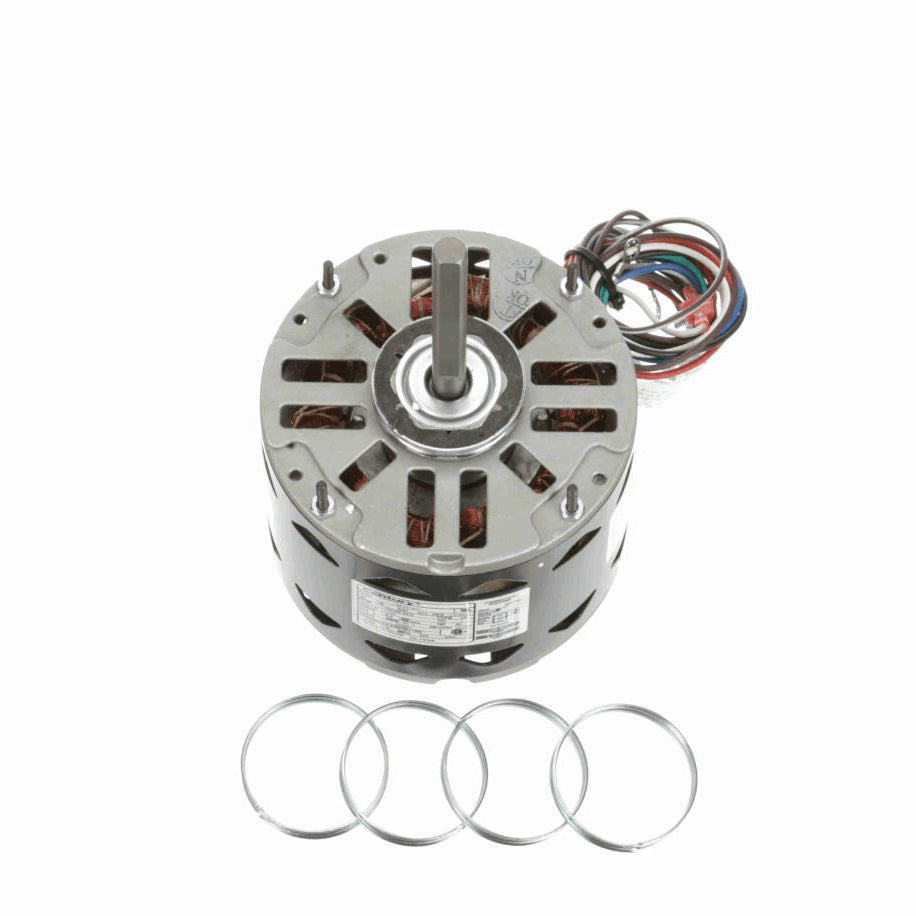

Century Fan and Blower Motor, 1/3 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, OPEN - DL1036

Century Fan and Blower Motor, 1/3 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, OPEN - DL1036

Back Order

Get it by Sat, May 24 - Thu, May 29

SKU kpi045-DL1036

0
(0 rating)
$130.56 USD
$130.56 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: TW
height: 6.54
length: 13.78
manufacturer: Century
mpn: DL1036
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 13
width: 6.81

Product Description

Century - DL1036

  • Fan Coils - Dual Wheel Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed1075 rpm
Current5.4 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originIndia
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.88 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency62.6 %
