category:
Electric Motors
height:
10
length:
16
manufacturer:
Century
mpn:
B6520
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
8

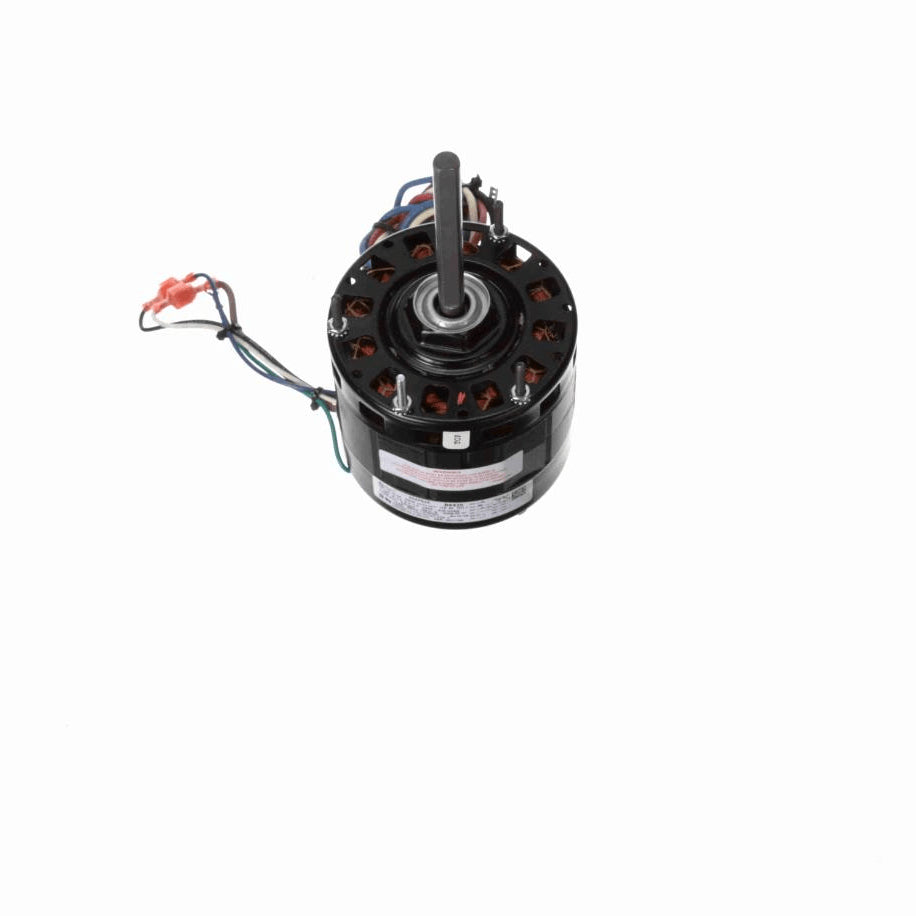

Product Overview
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 29" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.0 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/4 1/5 1/6 Hp
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
