category:
Electric Motors
country_of_origin:
MX
height:
9.81
length:
12.87
manufacturer:
Century
mpn:
BL6534
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
9.81

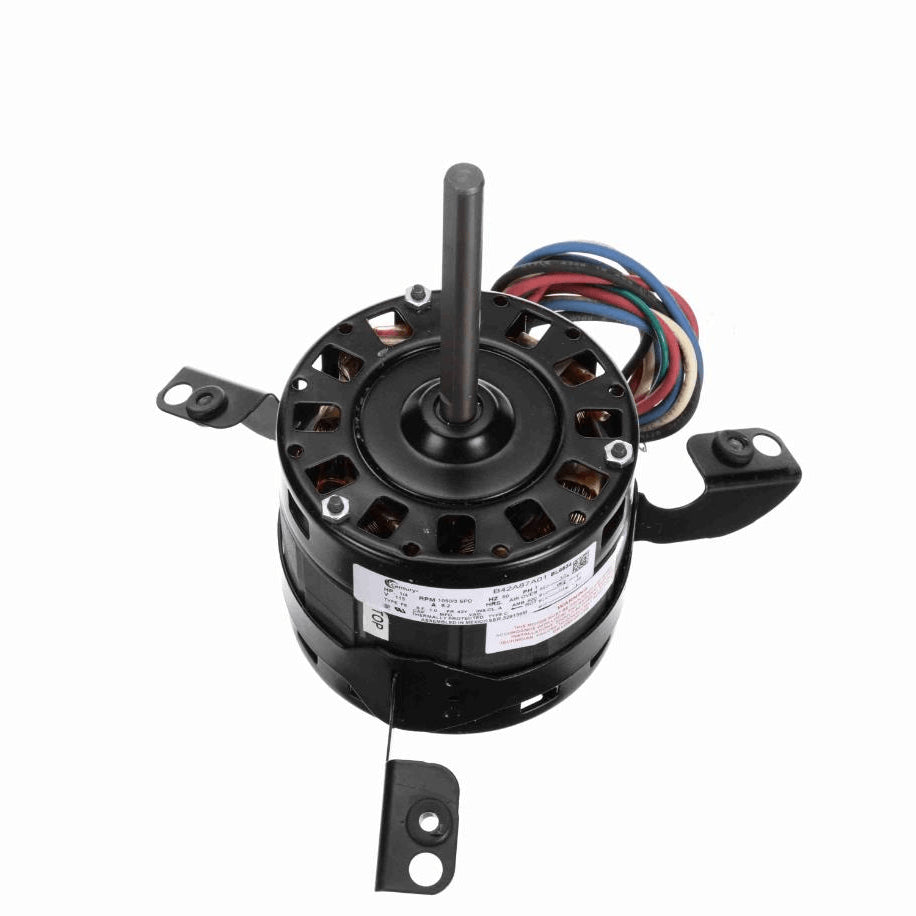

Product Overview
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 24" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current8.2 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingFlexible Arms
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
