category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
12.87
manufacturer:
Century
mpn:
9717
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.81

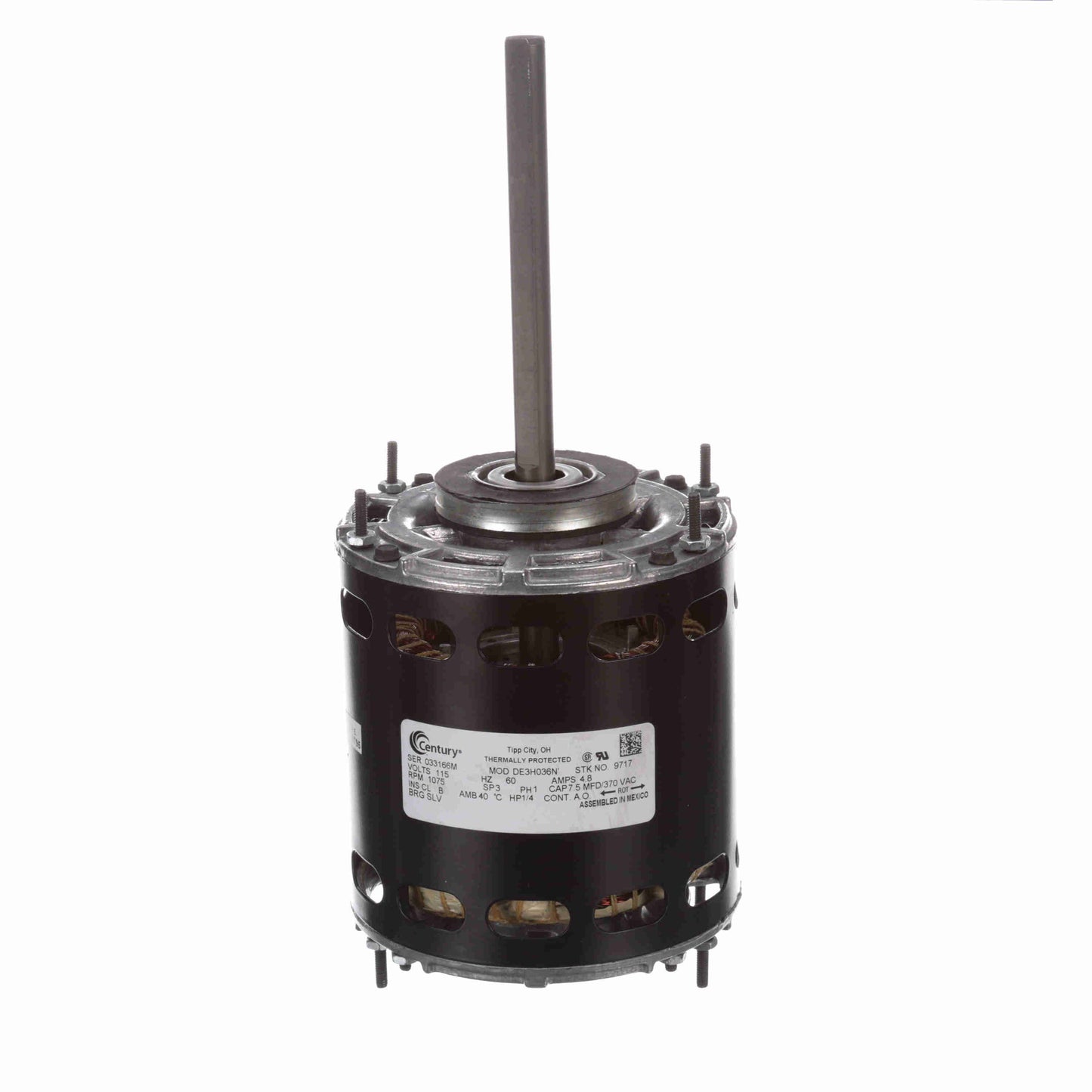

Product Overview
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 13" Leads
- Extended Studs Shaft End and Opposite Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current4.8 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.67 in
Shaft Diameter0.500 in
Shaft Extension5.8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
