category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
7FD1026
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.41

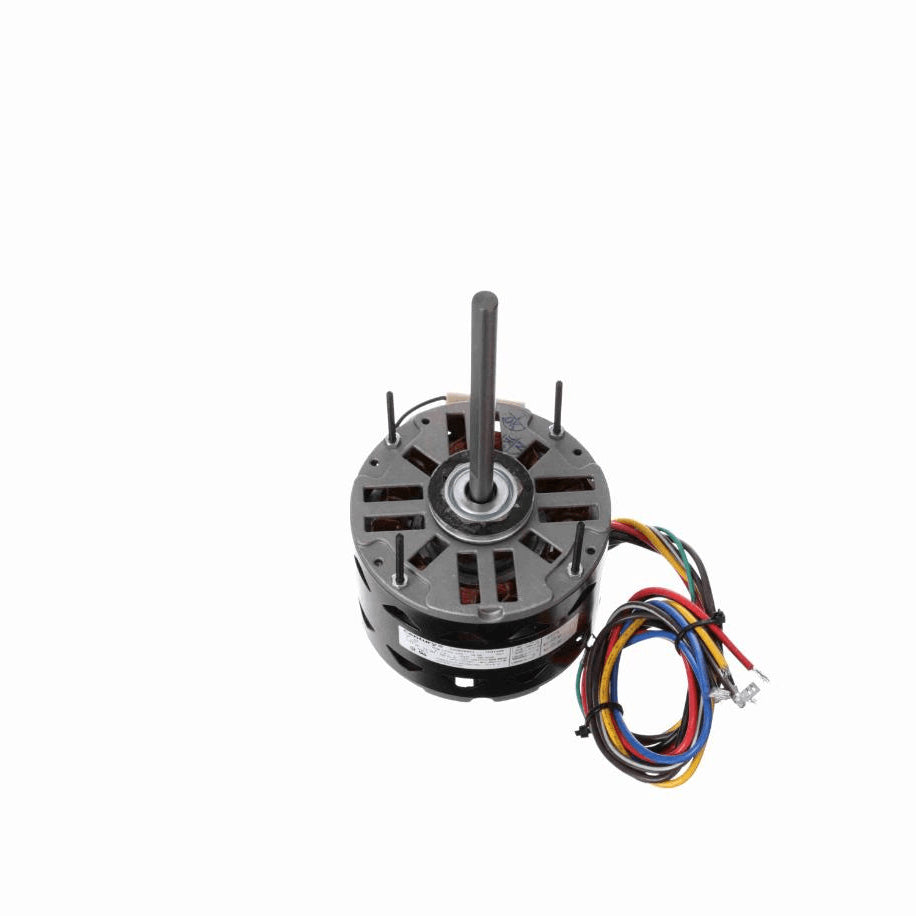

Product Overview
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.3 A
Number of Speeds3
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originIndia
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
