category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
10.87
manufacturer:
Century
mpn:
BL6505V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
5.81

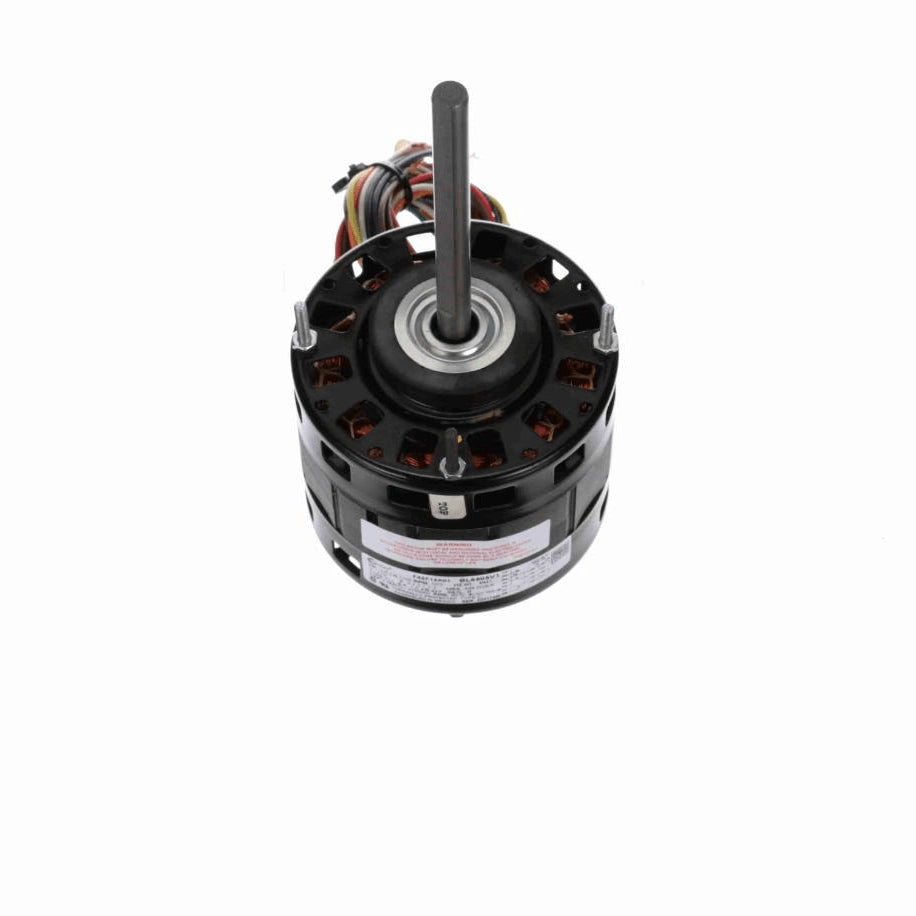

Product Overview
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34.5" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.2,2.1,1.7 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/5,1/8,1/10 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension5.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
