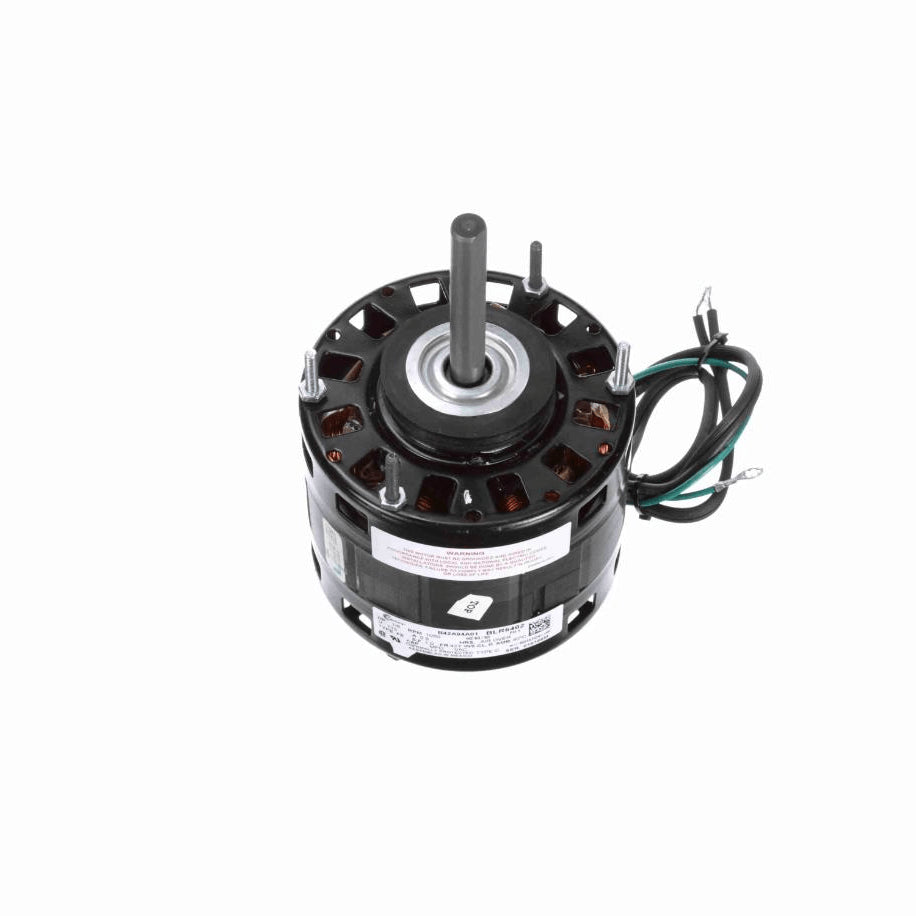

Century Fan and Blower Motor, 1/6 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 1 Speed, 42 Frame, OAO - BLR6402

Dropship

Get it by Sat, Jun 14 - Thu, Jun 19

SKU SKU:kpi045-BLR6402

(0 rating)

$182.51 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

30-day returns
Fast shipping
Secure payments
Over 300,000 products

category: Electric Motors

country_of_origin: MX

height: 7

length: 11

manufacturer: Century

mpn: BLR6402

subcategory: AC Motors - NEMA

type: HVAC - R Motors

weight: 8

width: 7.5

Product Description

Century - BLR6402

Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
5" Diameter - 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
21" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current5.5 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight8.00 LB

Country Of originMexico

Output HP1/6 Hp

Output KW0.13 kW

Service Factor1

Frame42Y

EnclosureOpen Air Over

DutyAir Over

Electrical TypeShaded Pole

Poles6

RotationCounterclockwise Lead End

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialN/A

Shaft TypeFlat

Shaft Diameter0.500 in

Shaft Extension2.7 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
