category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
10.87
manufacturer:
Century
mpn:
9701
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
5.81

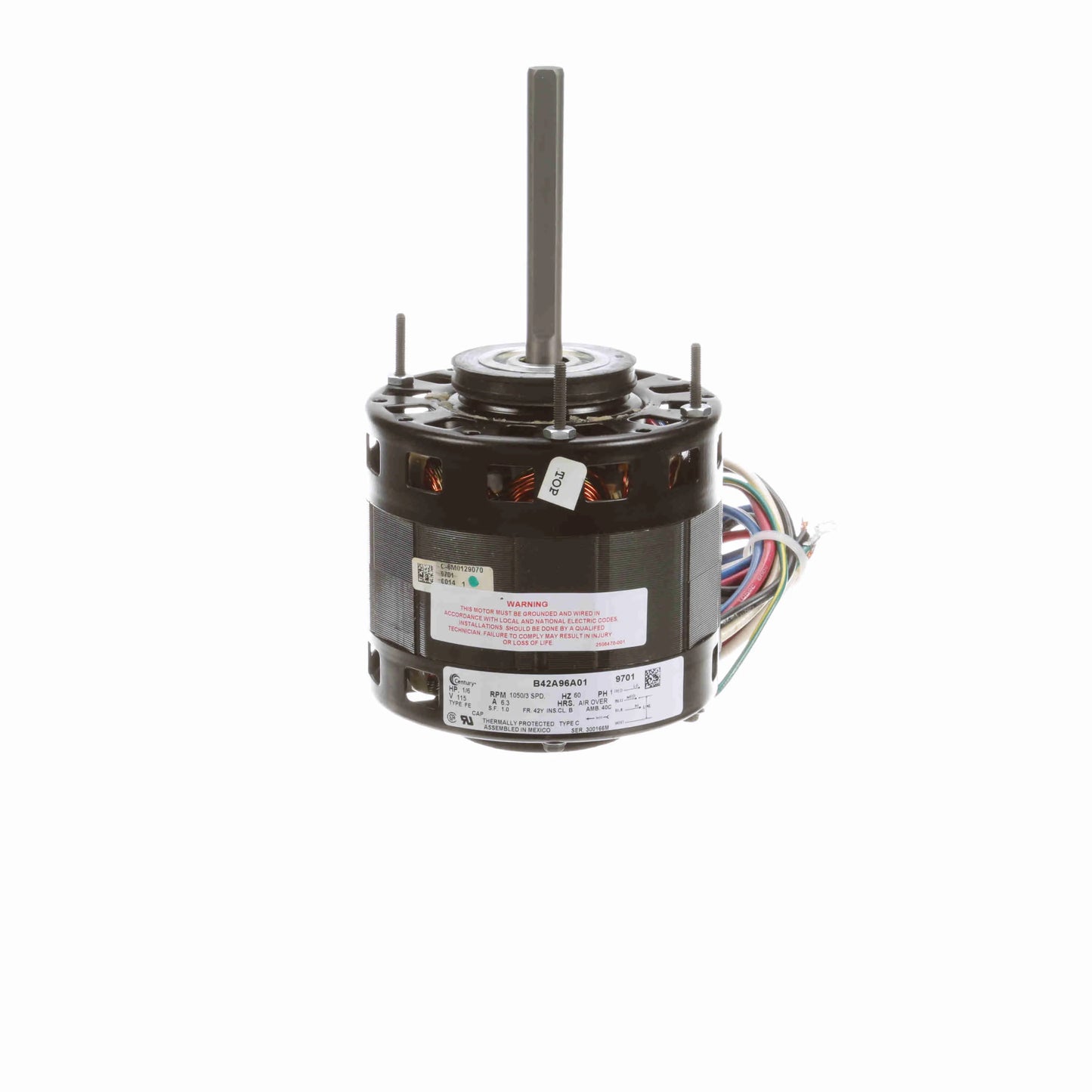

Product Overview
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current6.3 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
