category:
Electric Motors
height:
7
length:
11
manufacturer:
Century
mpn:
9640
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
7.5

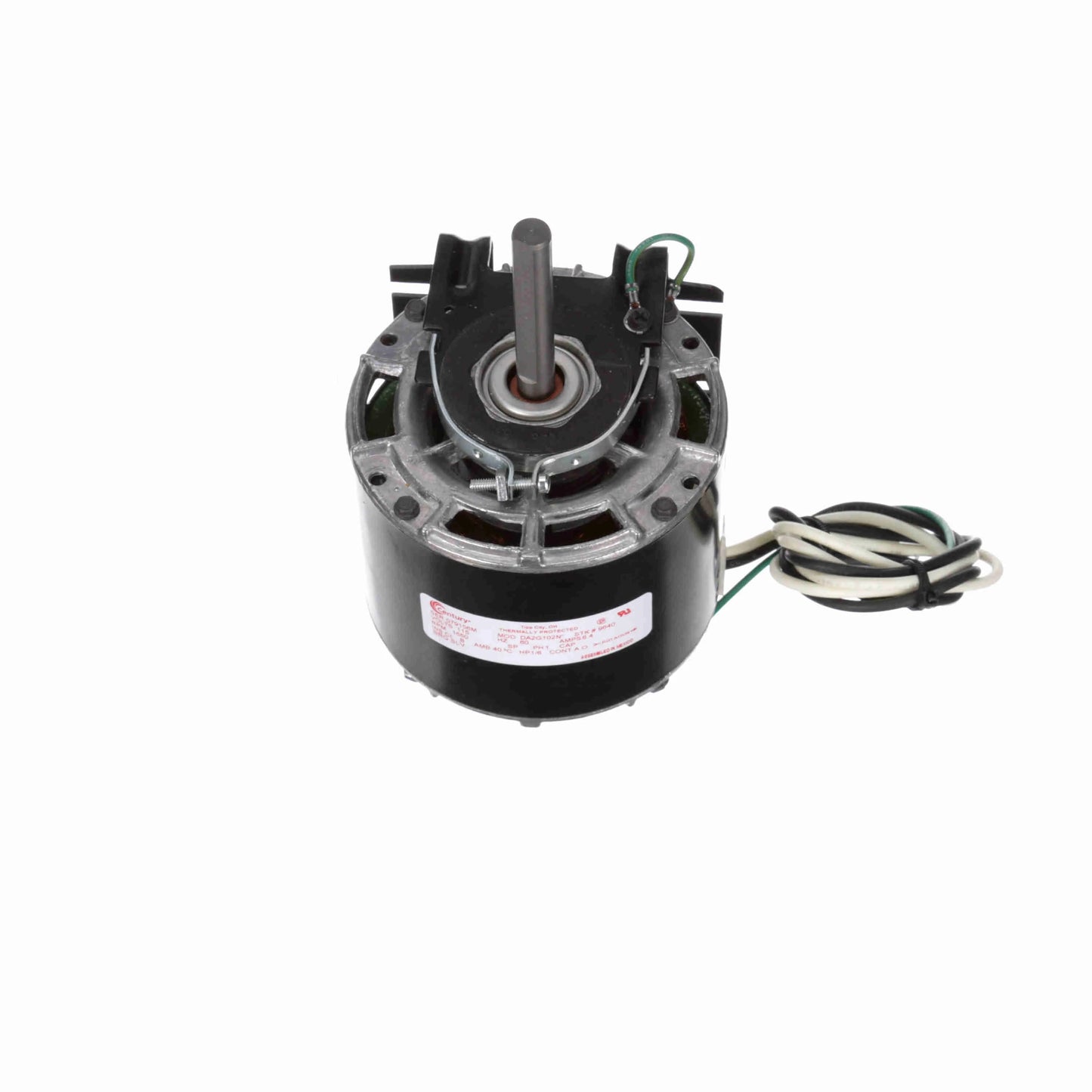

Product Overview
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current6.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.42 in
Shaft Diameter0.500 in
Shaft Extension3.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
