category:
Electric Motors
height:
7
length:
11
manufacturer:
Century
mpn:
9645
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
7.5

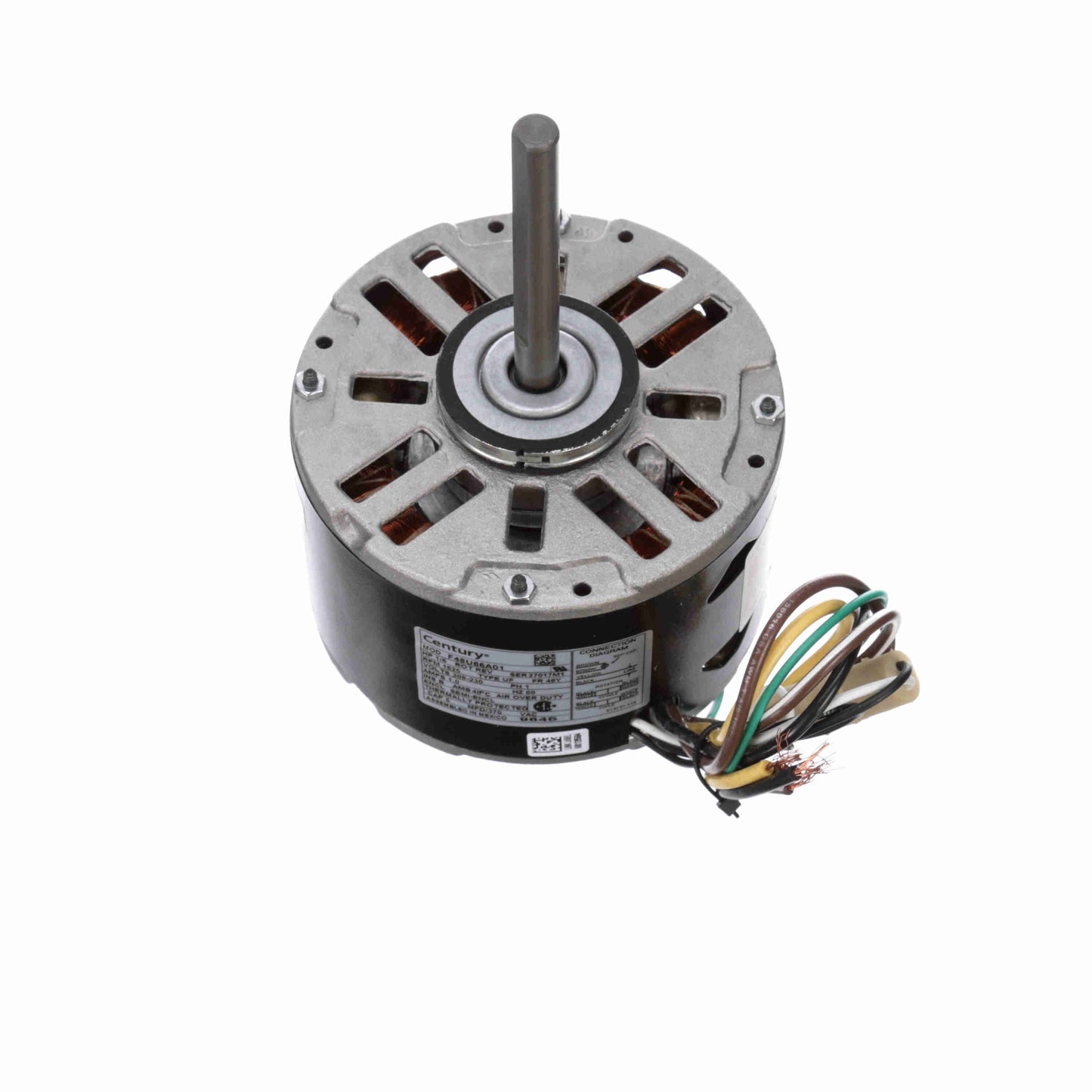

Product Overview
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.00 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
