category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
13.18
manufacturer:
Century
mpn:
FSP4006S
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.25

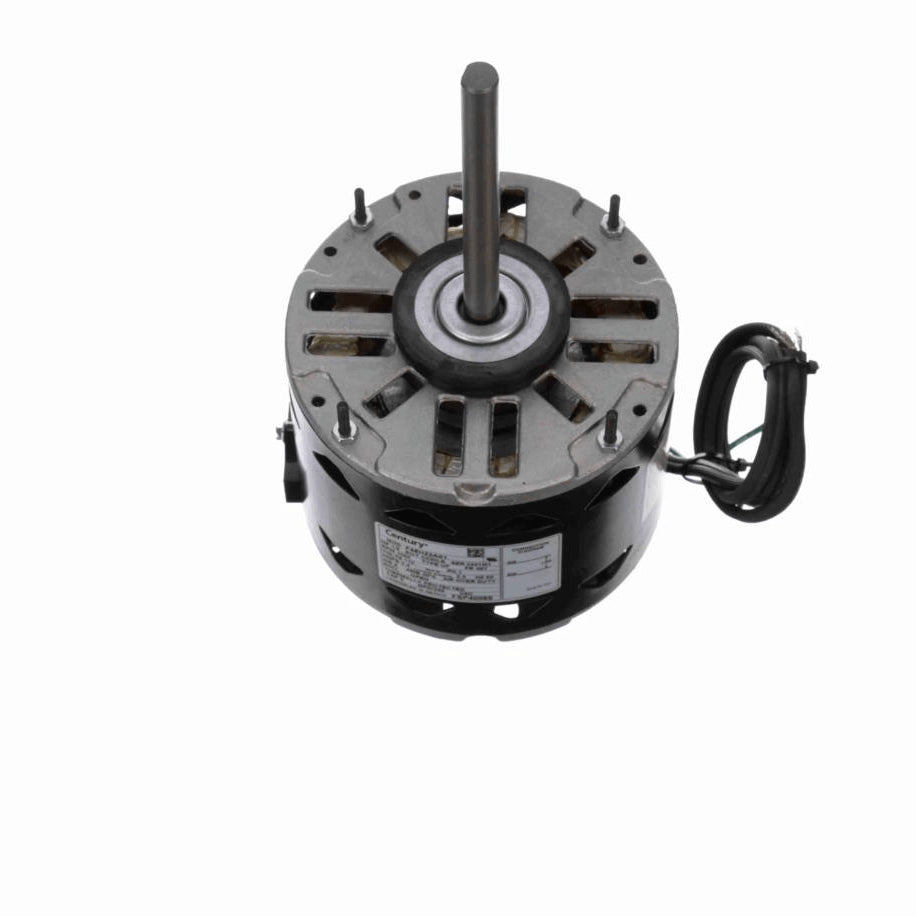

Product Overview
- Furnace - Air Handler - Fan Coil Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-250 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 29" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current2.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAN
Weight9.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension5.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
