category:
Electric Motors
height:
7.31
length:
11.88
manufacturer:
Century
mpn:
9641
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
5.81

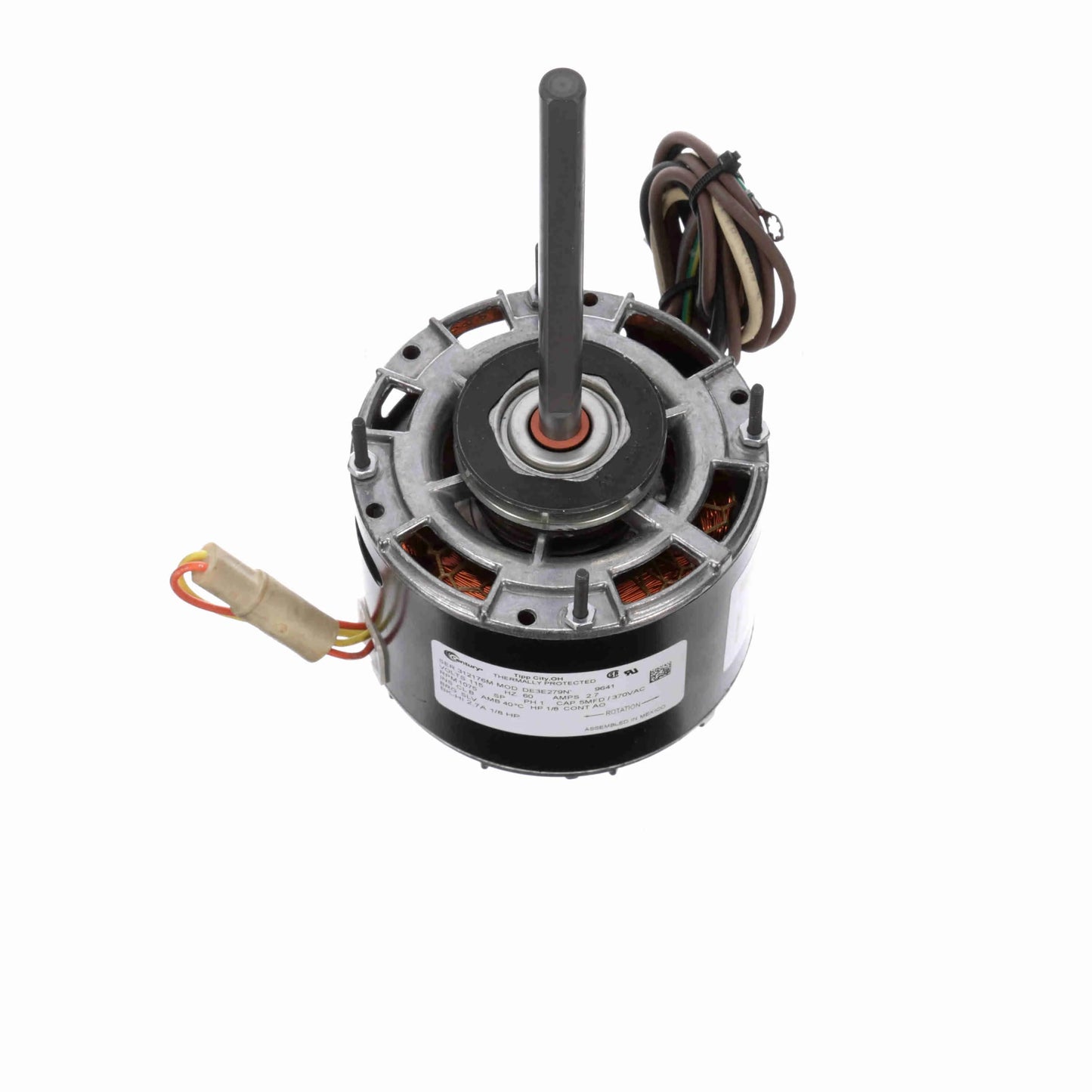

Product Overview
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 24" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
