category:
Electric Motors
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
BD1106
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20
width:
6.45
Product Overview

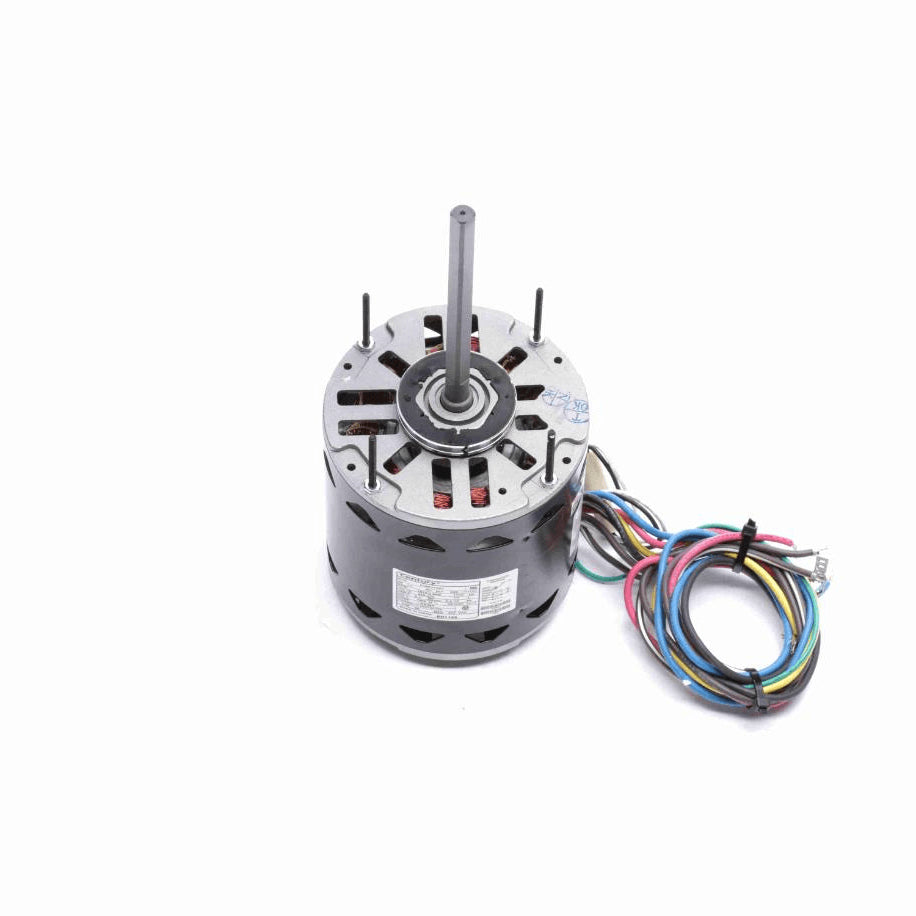

- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current4.8 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.00 LB
Country Of originIndia
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.00 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.6040
CEN
Starting MethodAcross The Line
Efficiency70 %
