category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
BDH1106
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
22
width:
6.45
Product Overview

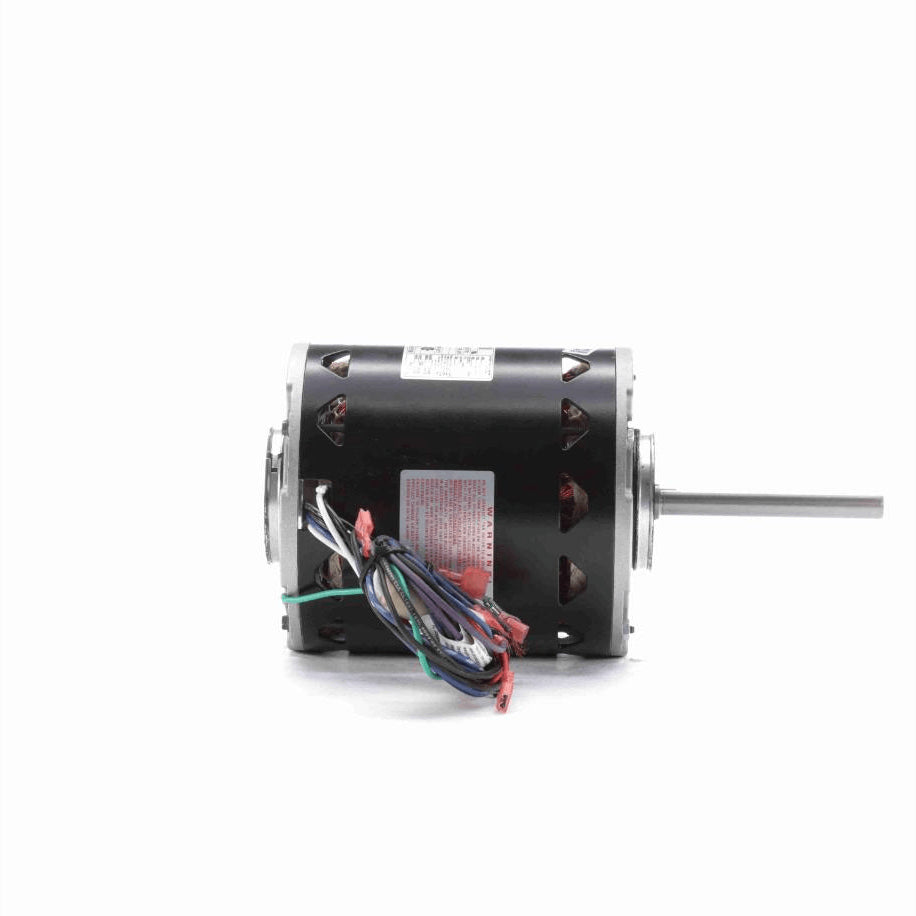

- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads with Quick Connect Terminals
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current3.2 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight22.00 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.50 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.6040
CEN
Starting MethodAcross The Line
