category:
Electric Motors
height:
6.81
length:
12.87
manufacturer:
Century
mpn:
150A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
6.81
Product Overview

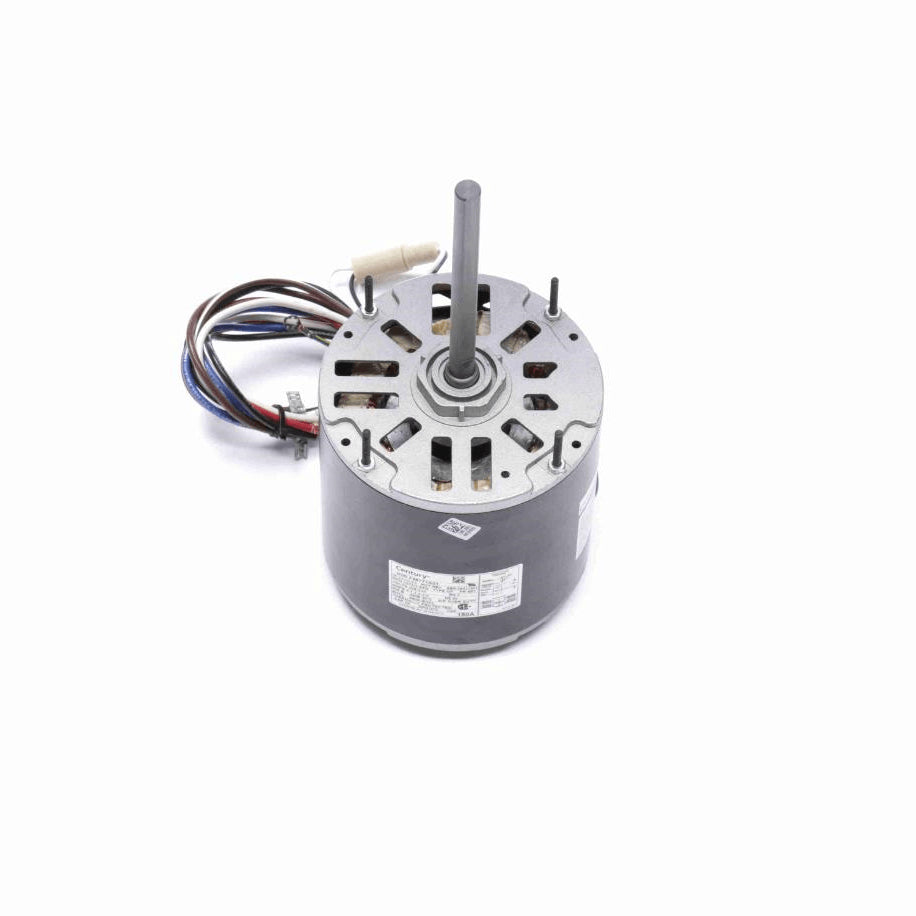

- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 23" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current4.7,3.4,2.0 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4,1/2,1/3 Hp
Output KW0.56 kW
Service Factor1
FrameF48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.88 in
Shaft Diameter0.500 in
Shaft Extension6.05 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
