category:
Electric Motors
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
9605A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
6.45
Product Overview

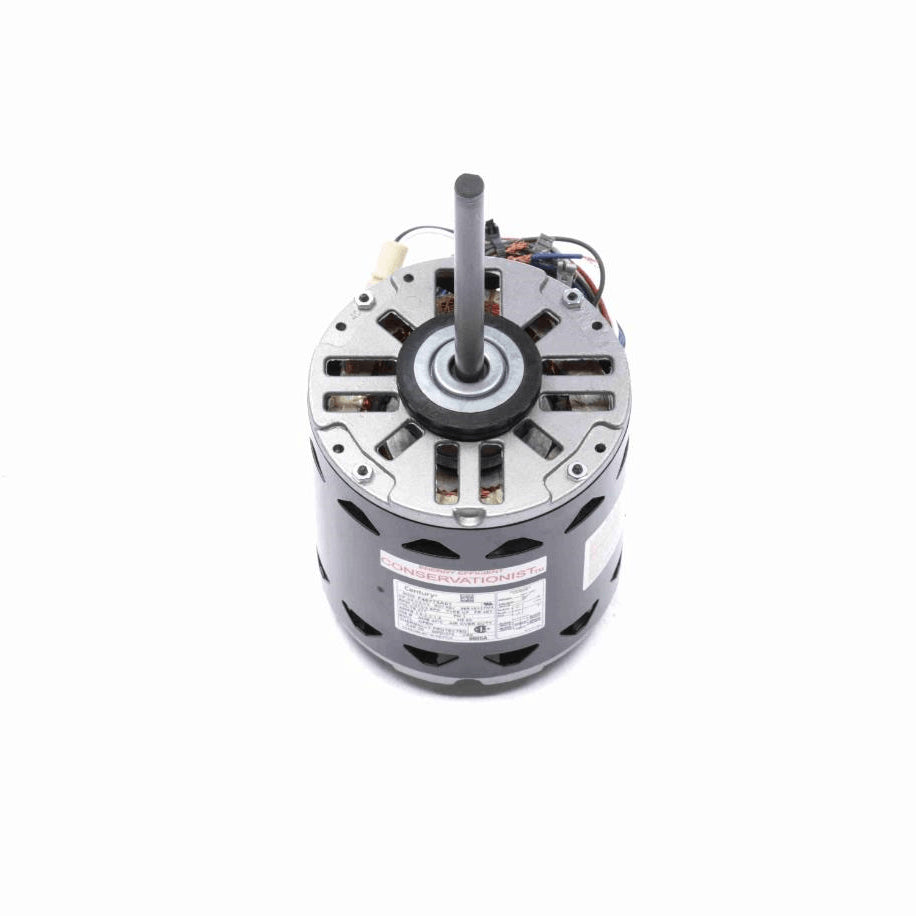

- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.9,2.2,1.6 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originIndia
Output HP3/4,1/2,1/3 Hp
Output KW0.56 kW
Service Factor1
FrameF48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.88 in
Shaft Diameter0.500 in
Shaft Extension5.50 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
