category:
Electric Motors
height:
6.81
length:
15.55
manufacturer:
Century
mpn:
DL1076
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
6.45
Product Overview

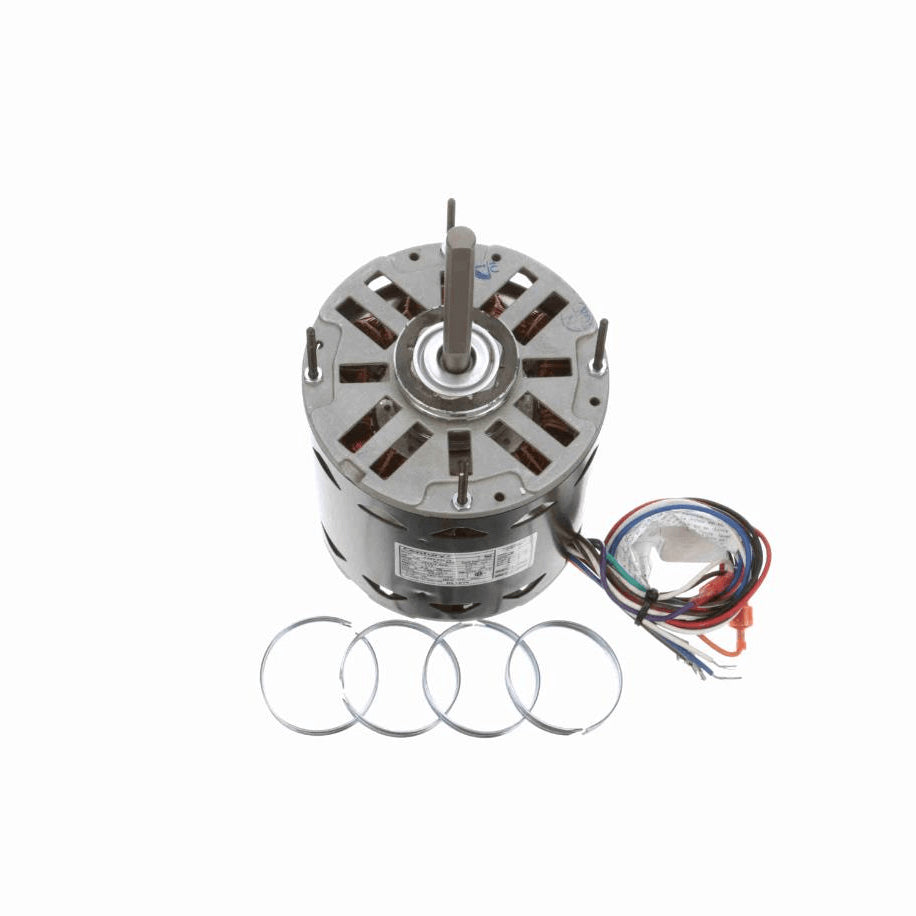

- Fan Coils - Dual Wheel Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current9.5 A
Number of Speeds3
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originIndia
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.00 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency61 %
