category:
Electric Motors
country_of_origin:
TW
height:
7.37
length:
16.12
manufacturer:
Century
mpn:
FDL1074
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
7.31

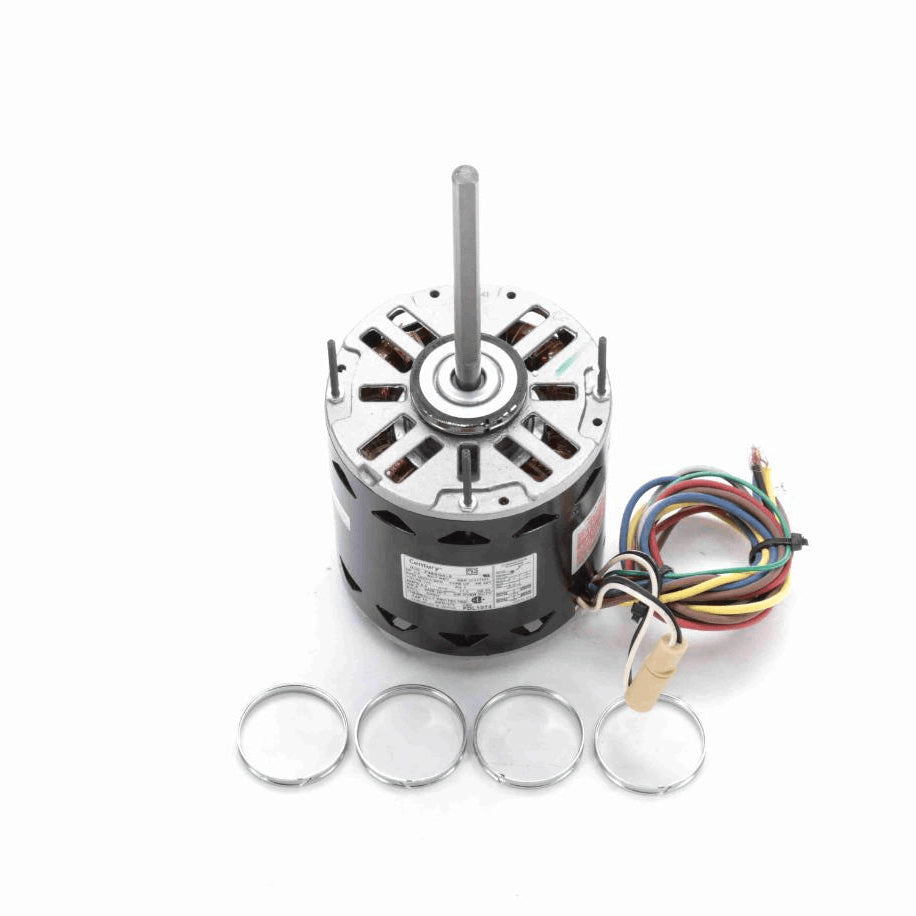

Product Overview
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current8.5 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.00 in
Shaft Diameter0.500 in
Shaft Extension6.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency65 %
