category:
Electric Motors
country_of_origin:
TW
height:
8.81
length:
25.87
manufacturer:
Century
mpn:
DBL4500V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
8.81

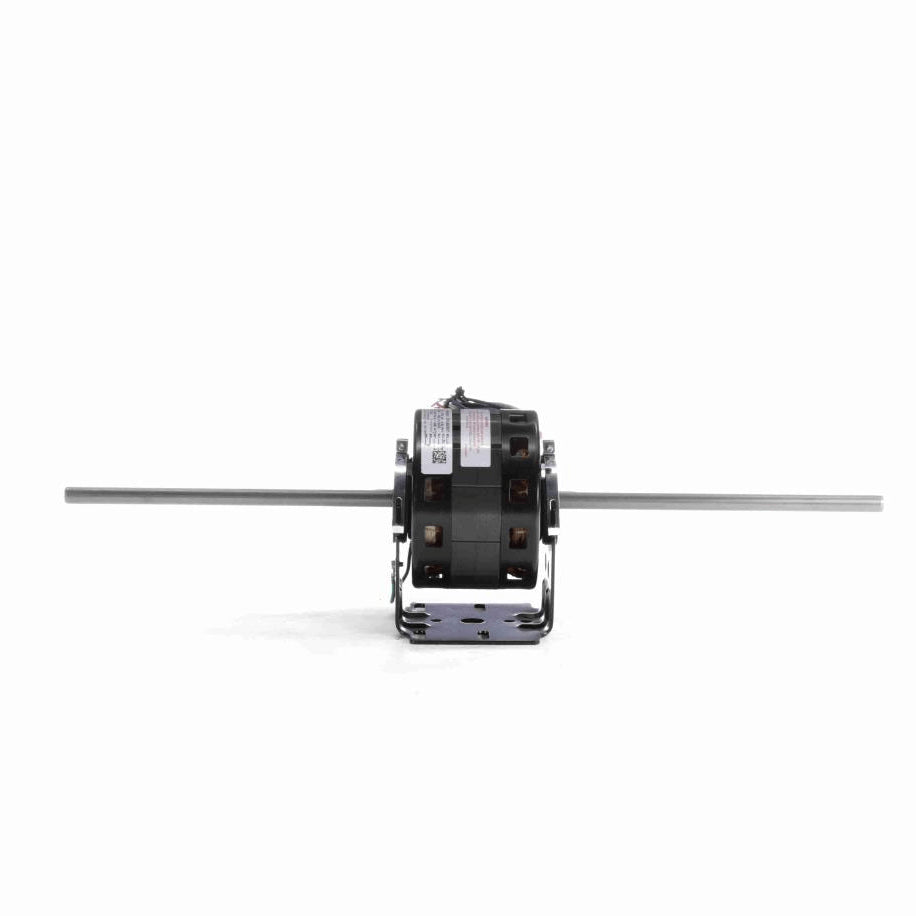

Product Overview
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 38.5" Leads with Quick Connect Terminals
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.3/1.0/0.7 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/10-1/12-1/15 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension9.3X.5X9.3 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
