category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
26.87
manufacturer:
Century
mpn:
DBL6409NB
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.81
Product Overview

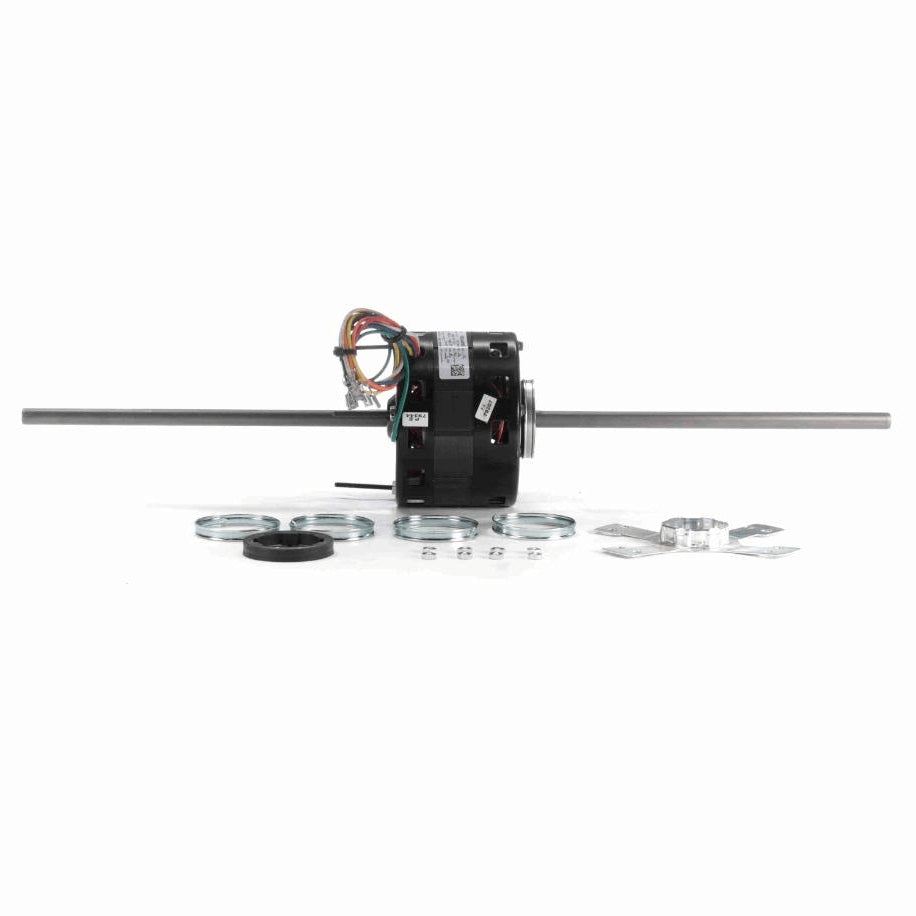

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 38.5" Leads with Quick Connect Terminals
- Length Adapter Kit to Allow for Resilient Base Mounting in Existing Base
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current3.5,2.8,2.2,1.9,1.6 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/10,1/15,1/20,1/25,1/30 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension10.2X.5X10.5 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
