category:
Electric Motors
country_of_origin:
TW
height:
8.5
length:
4.38
manufacturer:
Century
mpn:
341
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
4.38

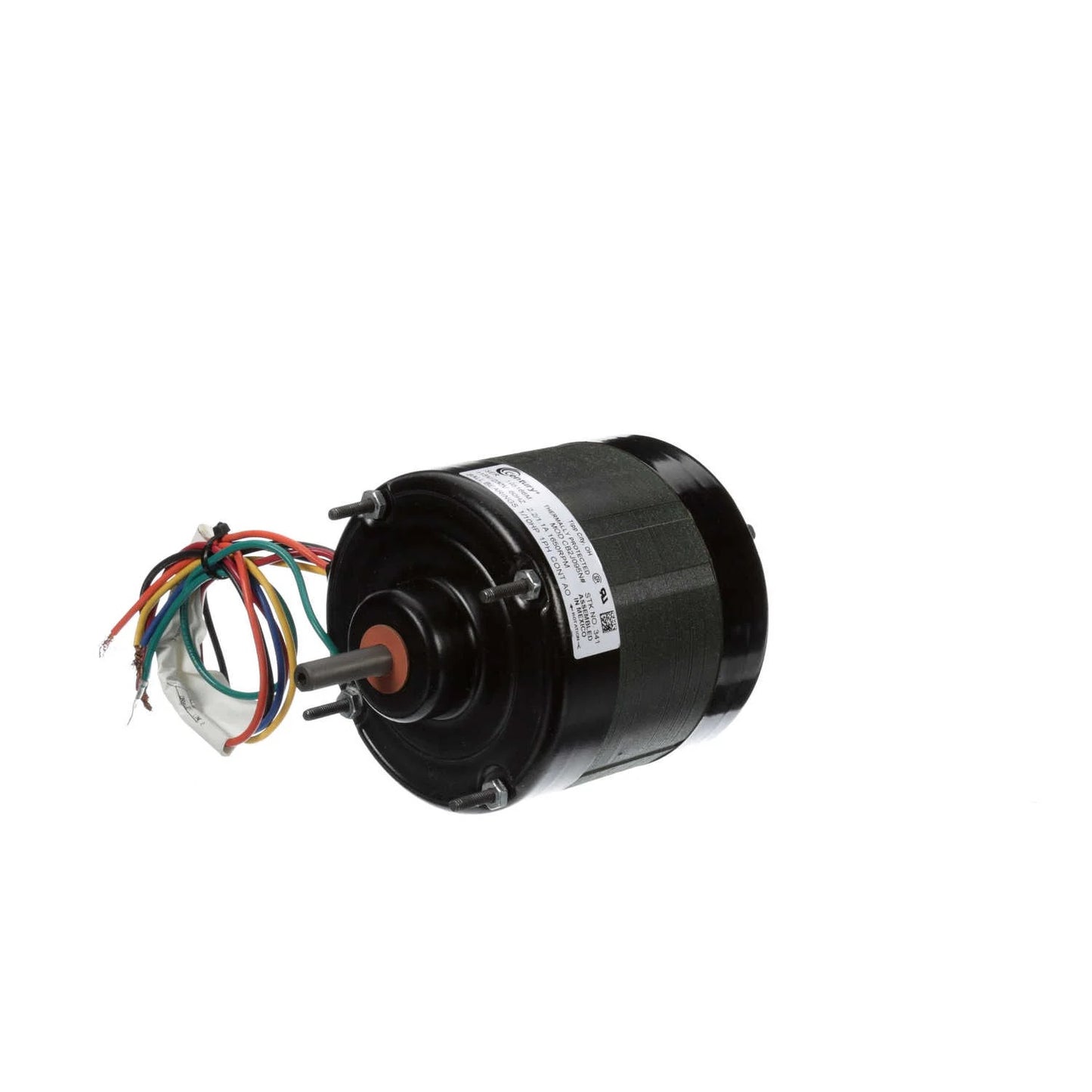

Product Overview
- Fan Coil Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1650 rpm
Current2.2/1.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2 X 3/8 X 2 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
