category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
26.87
manufacturer:
Century
mpn:
DBL64062
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.81
Product Overview

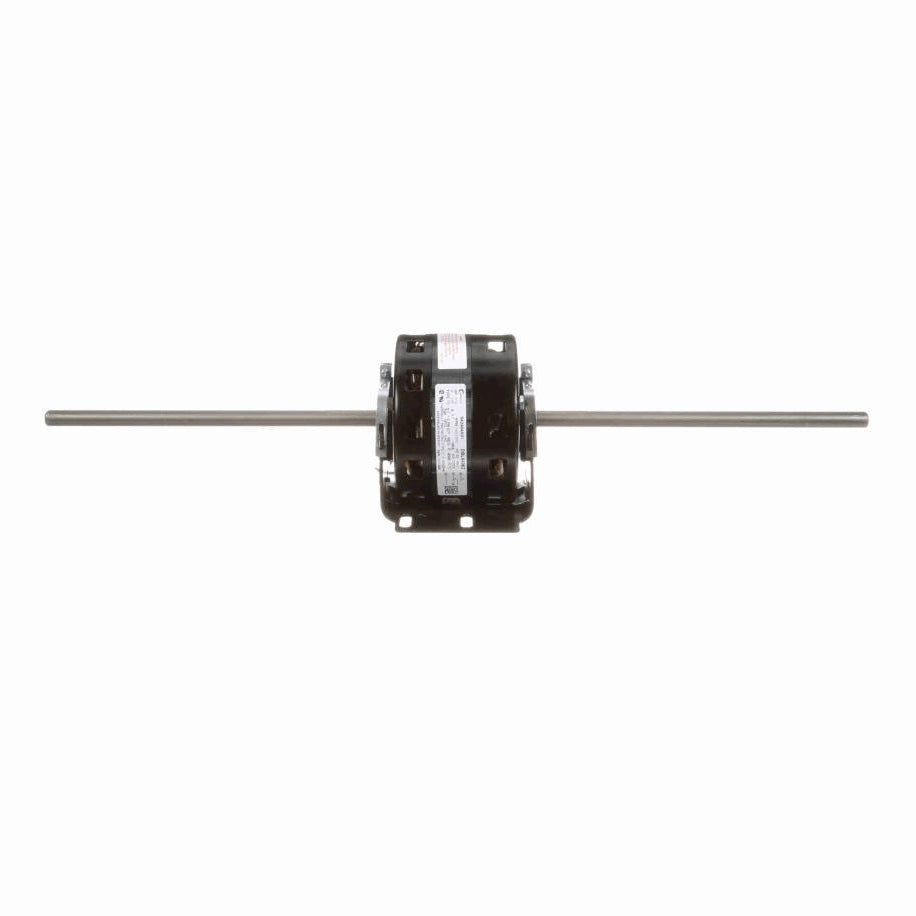

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 38.5" Leads with Quick Connect Terminals
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current3.7 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension9.8X.5X9.8 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
