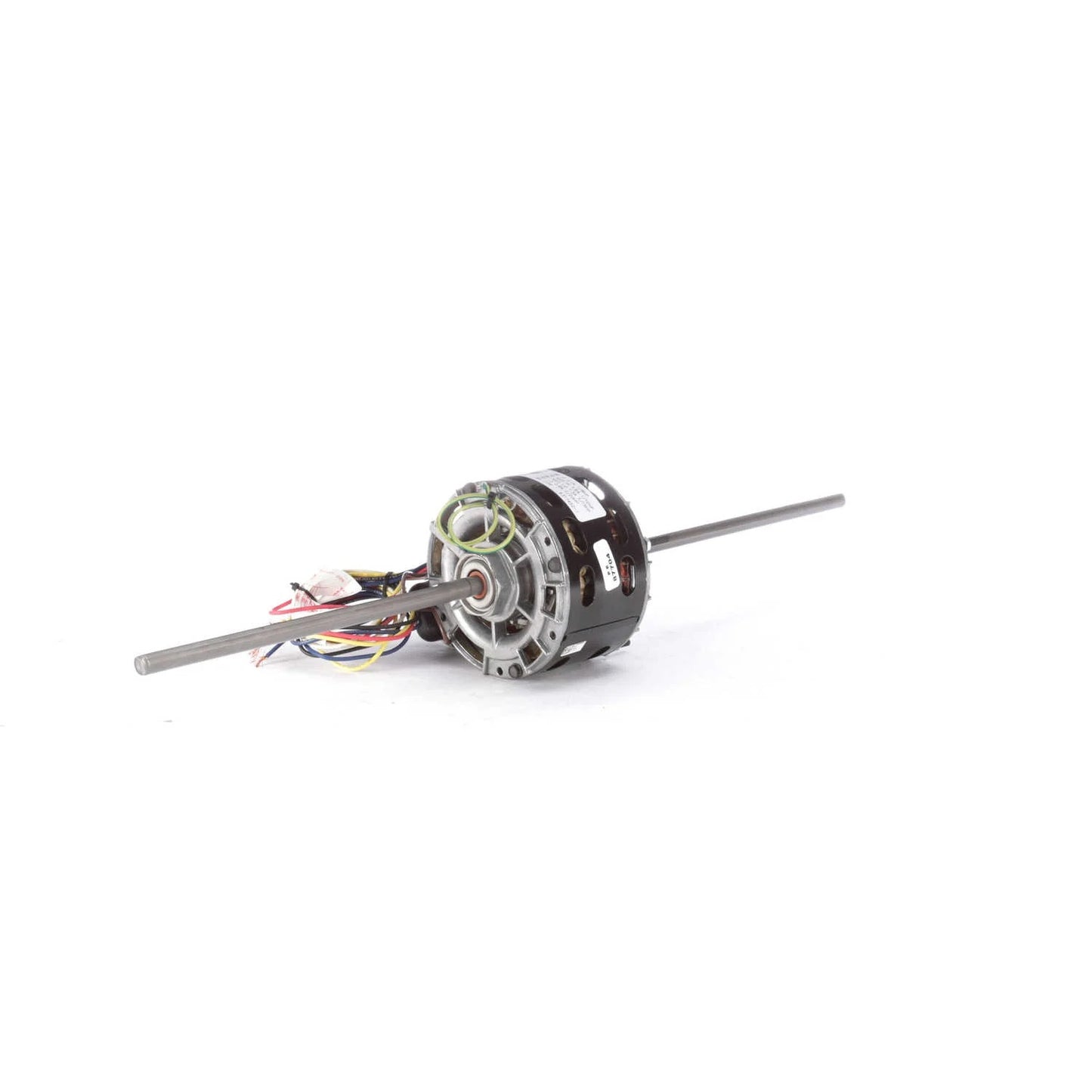

Century - 89PSC
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 54" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.62 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingResilient Base
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.56 in
Shaft Diameter0.500 in
Shaft Extension10.69X.5X10.69 in
CEN
Starting MethodAcross The Line
AvailabilityIn stock
CategoryElectric Motors
Custom label 2in-stock
Height6.5
Length27.5
ManufacturerCentury
Mpn89PSC
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight11
Width6.25
