category:
Electric Motors
country_of_origin:
MX
height:
8.81
length:
25.87
manufacturer:
Century
mpn:
9652
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
8.81
Product Overview

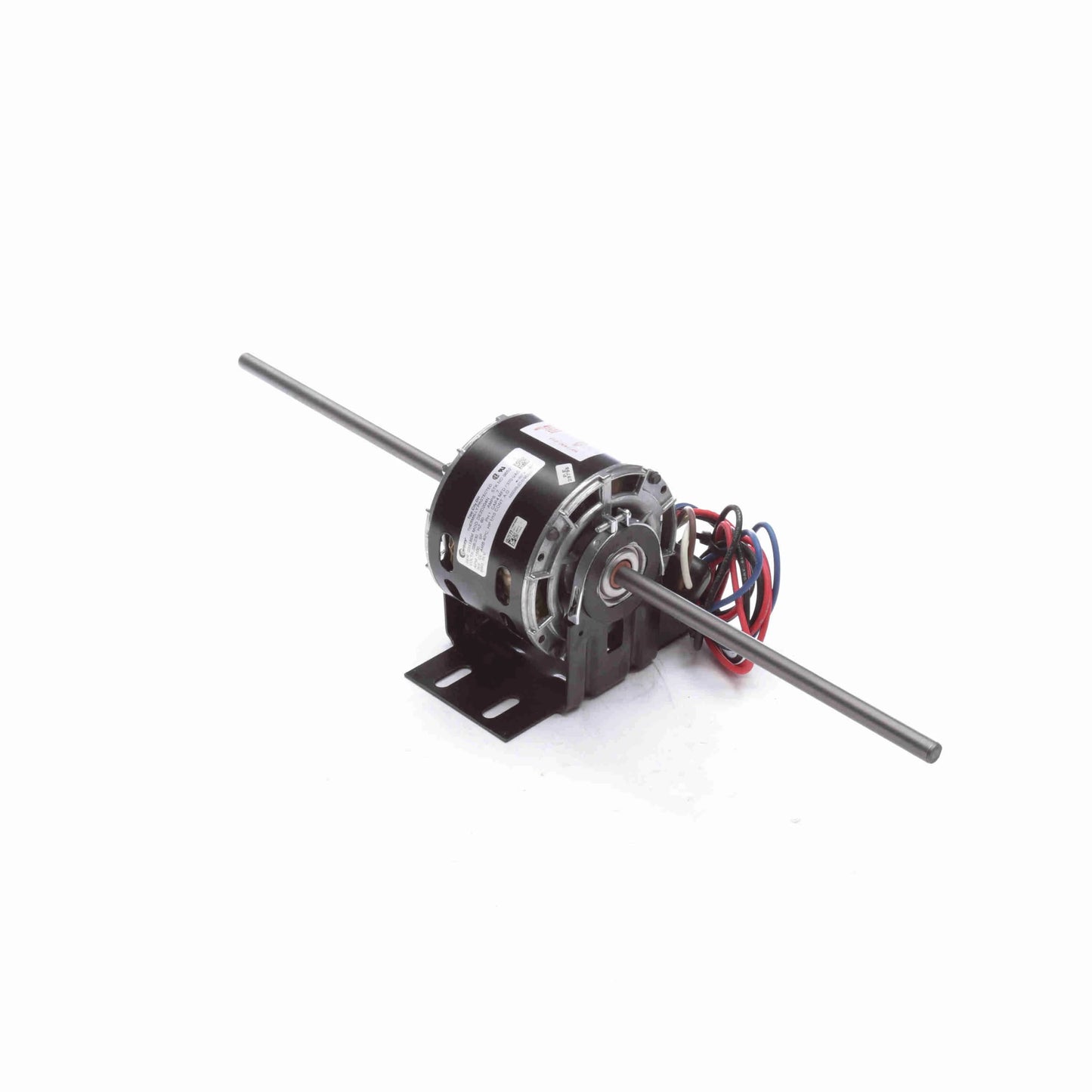

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 31" Leads with Quick Connect Terminals
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1500 rpm
Current.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension9.8X.5X9.8 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
