category:
Electric Motors
country_of_origin:
TW
height:
26.88
length:
4.38
manufacturer:
Century
mpn:
53
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
4.38

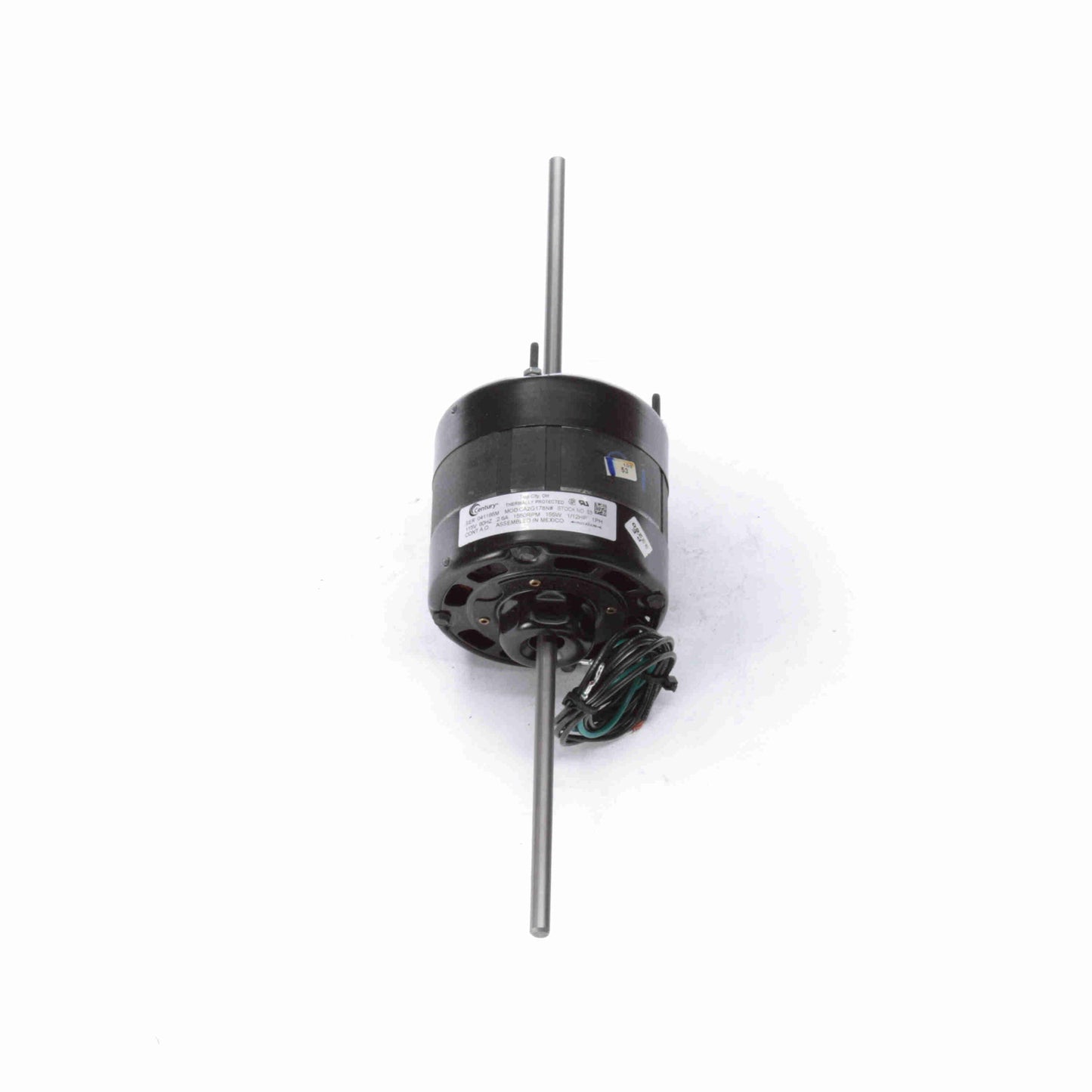

Product Overview
- Fan Coil Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 36" Leads
- Extended Studs Opposite Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current2.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame4.4
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension6 1/4 X 3/8 X 6 1/4 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
