category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
26.87
manufacturer:
Century
mpn:
9474
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.81
Product Overview

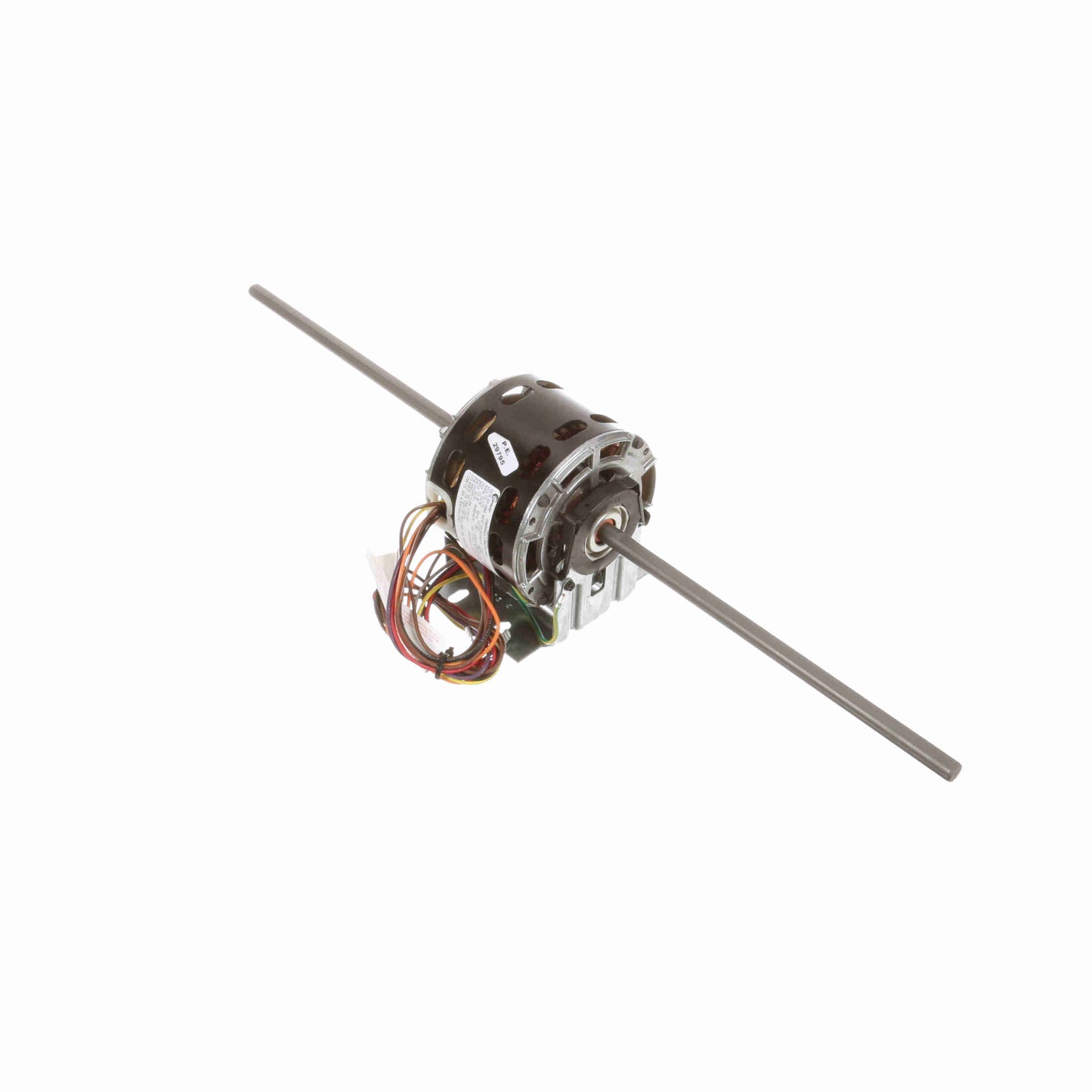

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 24" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.2/0.8/0.7/0.6 A
Number of Speeds4
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight11.00 LB
Country Of originMexico
Output HP1/15-1/20-1/25-1/35 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension11X.5X11 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
