category:
Electric Motors
height:
6.81
length:
26.87
manufacturer:
Century
mpn:
9670
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
6.81
Product Overview

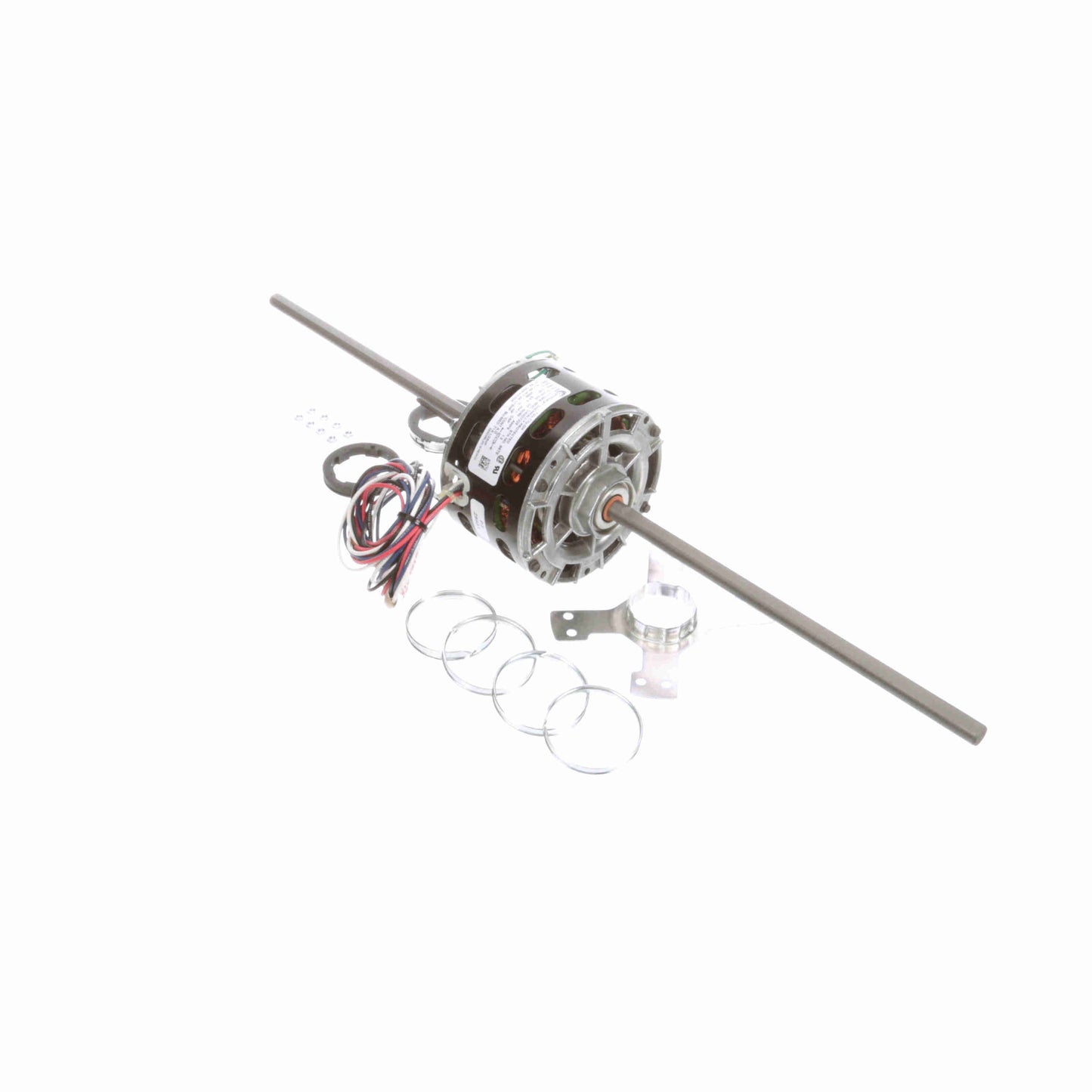

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 52.5" Leads
- Extended Studs Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.3 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.42 in
Shaft Diameter0.500 in
Shaft Extension10.5X.5X11.0 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
