category:
Electric Motors
height:
6.31
length:
16.87
manufacturer:
Century
mpn:
RAL10156
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.31

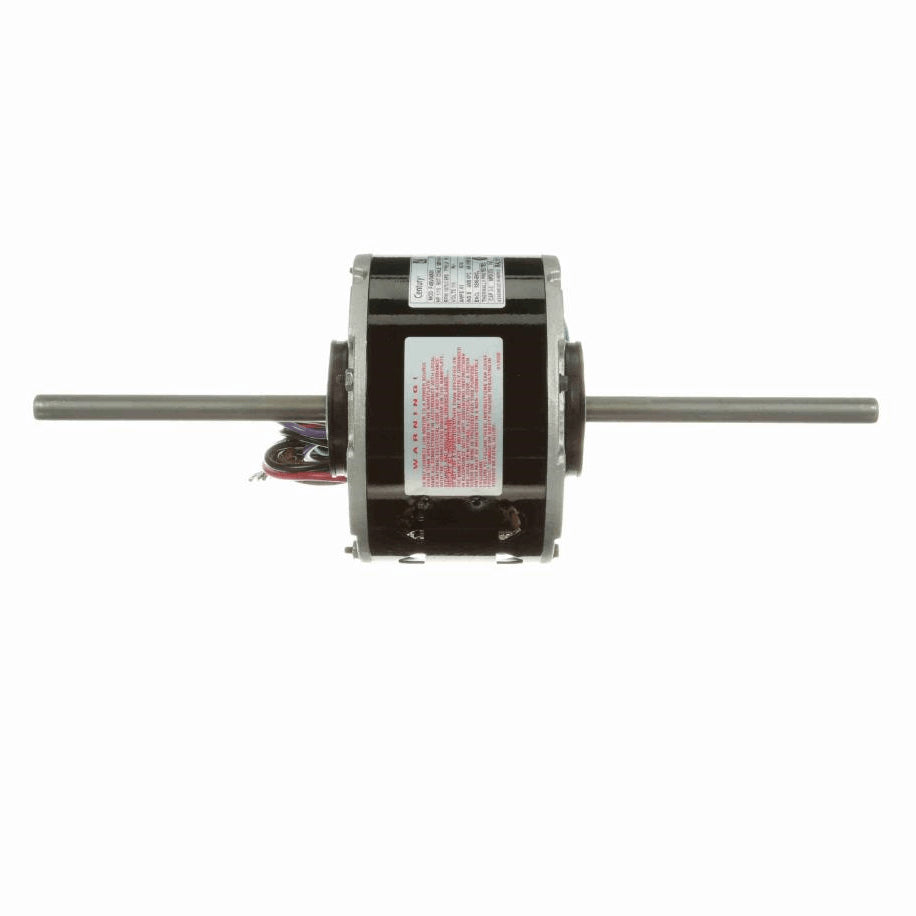

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3-5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Double Shaft with Flat
- 24" Leads
- Resilient Ring Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current.63 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.00 in
Shaft Diameter0.500 in
Shaft Extension5.9X.5X5.9 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
