category:
Electric Motors
height:
6.81
length:
22.87
manufacturer:
Century
mpn:
594A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
6.81

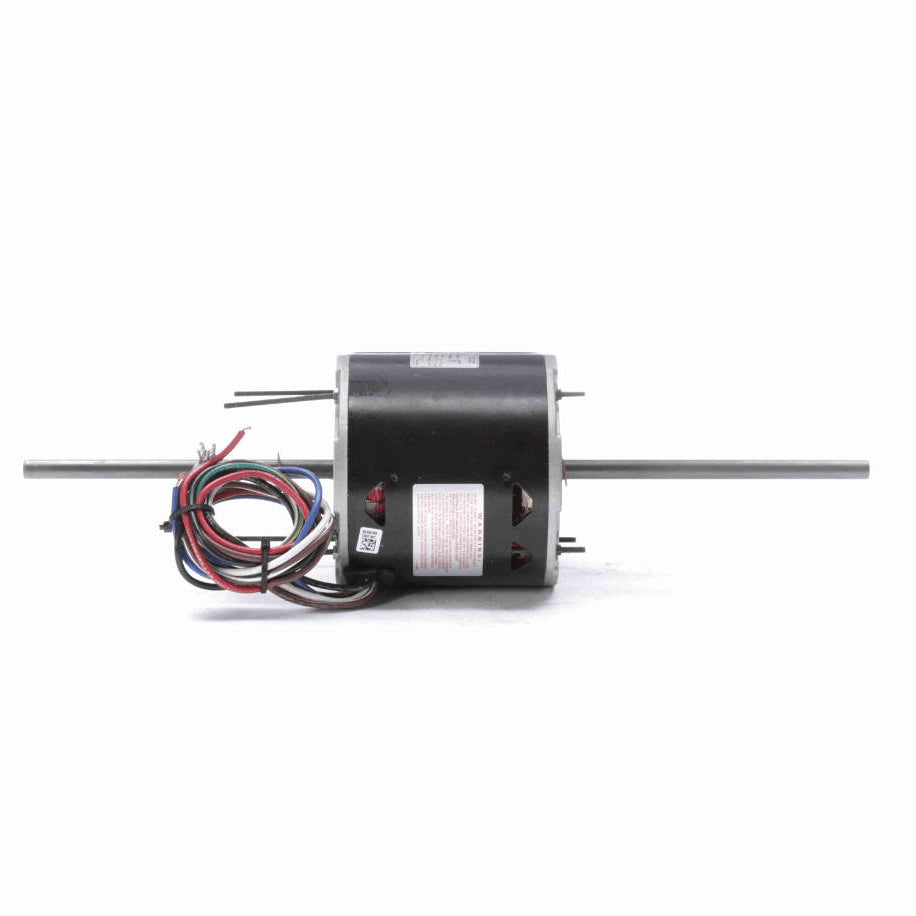

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Double Shaft with Flat
- 24" Leads
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current6.8,4.7,3.5 A
Number of Speeds3
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP1/2,1/3,1/4 Hp
Output KW0.37 kW
Service Factor1
FrameF48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.63 in
Shaft Diameter0.500 in
Shaft Extension7.50 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
