category:
Electric Motors
country_of_origin:
TW
height:
8.81
length:
25.88
manufacturer:
Century
mpn:
452B
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
8.81

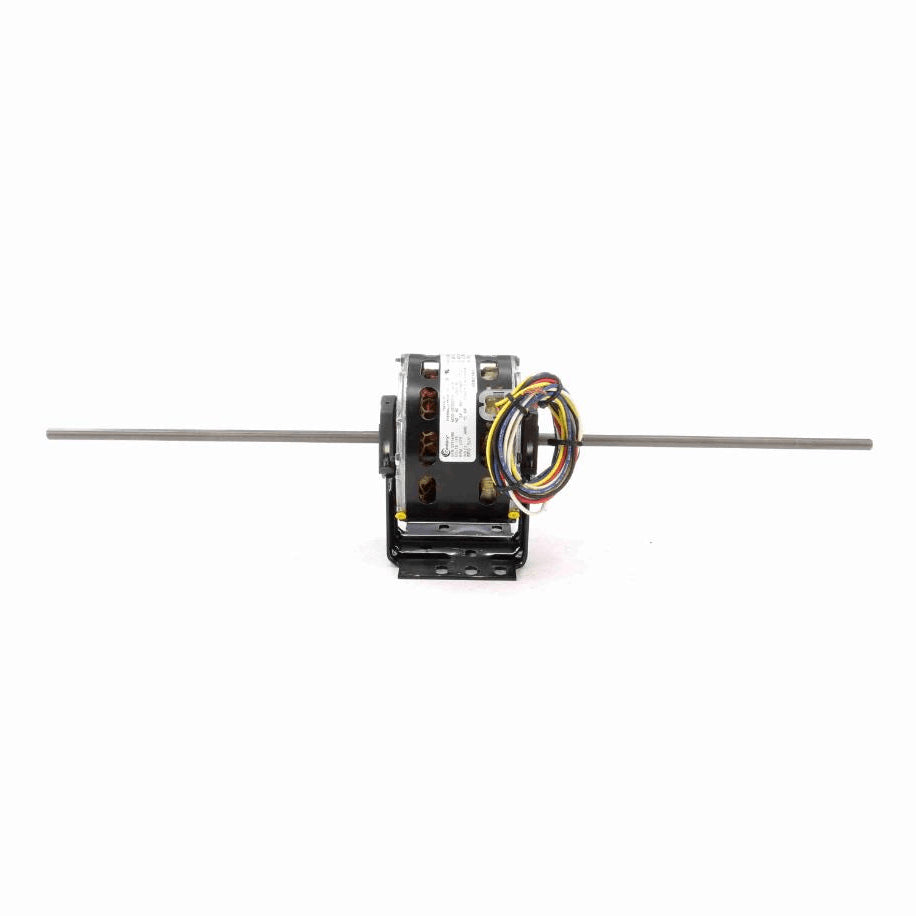

Product Overview
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 36" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current0.8 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/20, 1/25, 1/35, 1/50 Hp
Output KW0.04 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.92 in
Shaft Diameter0.375 in
Shaft Extension10.6X.38X10.6 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
