category:
Electric Motors
height:
26.88
length:
4.38
manufacturer:
Century
mpn:
363
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7
width:
4.38

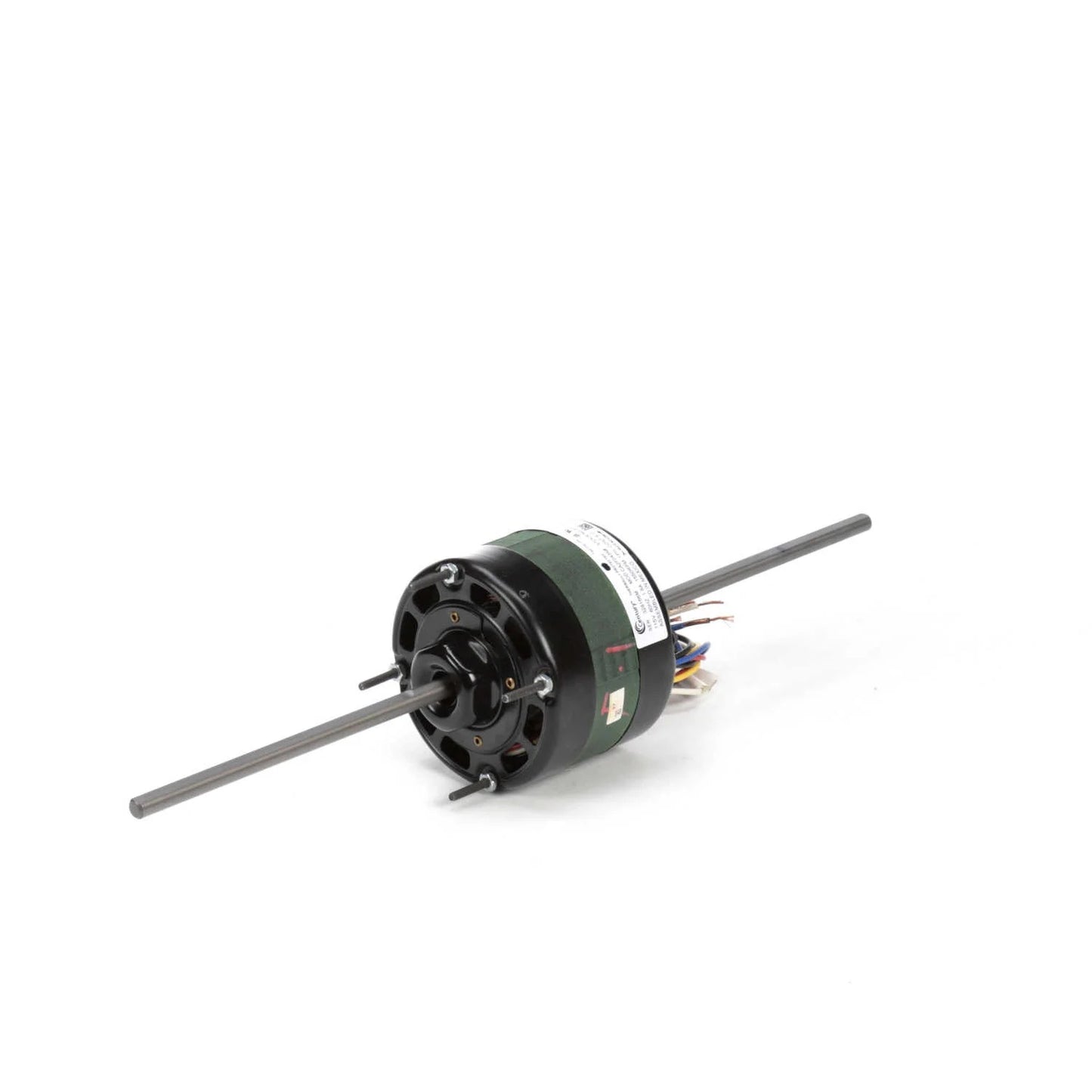

Product Overview
- Fan Coil Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 36" Leads
- Extended Studs Opposite Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.8/1.3/.95/.70 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.00 LB
Country Of originMexico
Output HP1/20-1/30-1/40-1/60 Hp
Output KW0.04 kW
Service Factor1
Frame4.4
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension7 1/2 x 3/8 X 7 1/2 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
