category:
Electric Motors
country_of_origin:
TW
height:
7.81
length:
18.88
manufacturer:
Century
mpn:
382
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.81

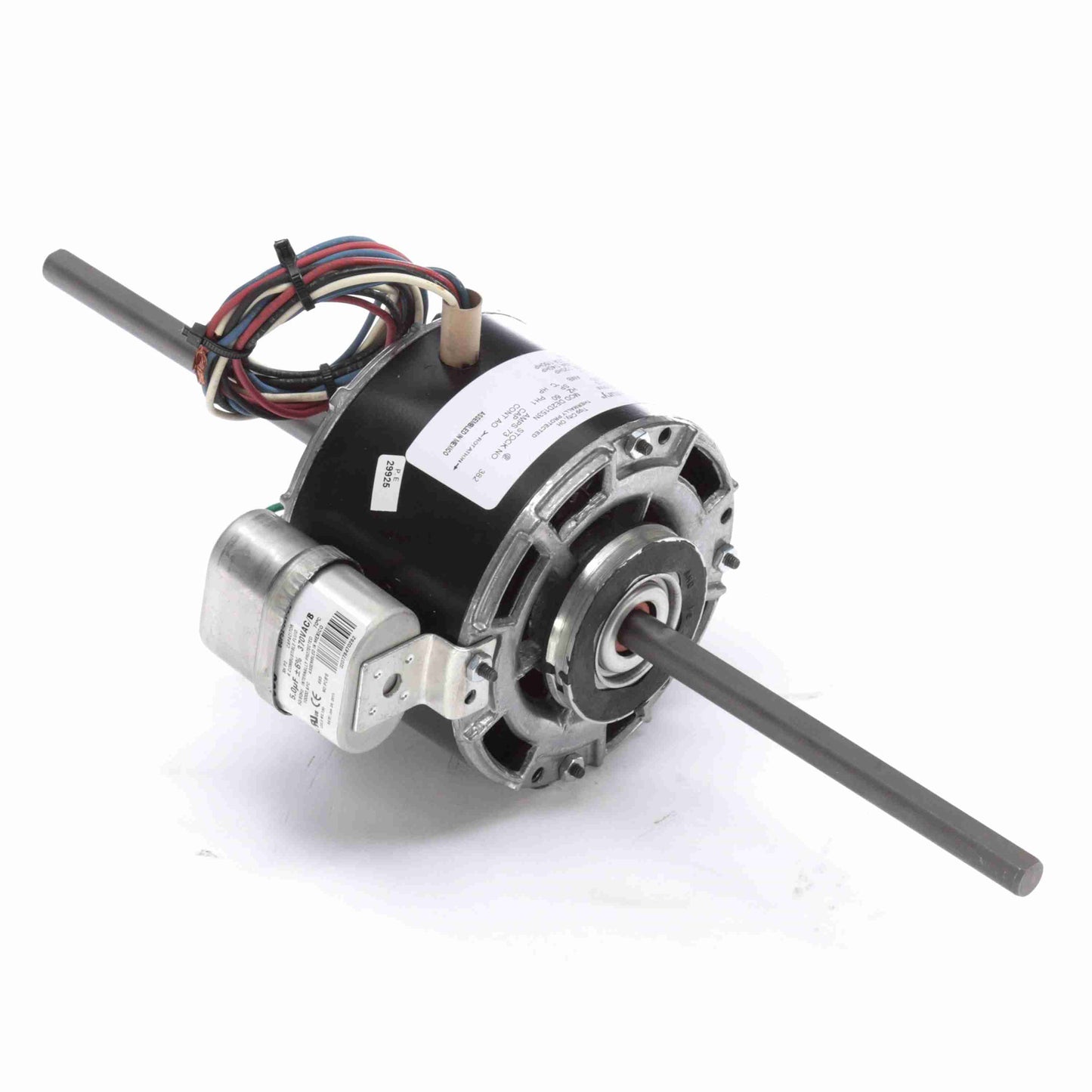

Product Overview
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 36" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current.73 A
Number of Speeds3
Ambient Temperature40 °C
ULNo
Insulation ClassA
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/25, 1/40, 1/50 Hp
Output KW0.03 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.92 in
Shaft Diameter0.500 in
Shaft Extension6.6X.5X6.6 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
